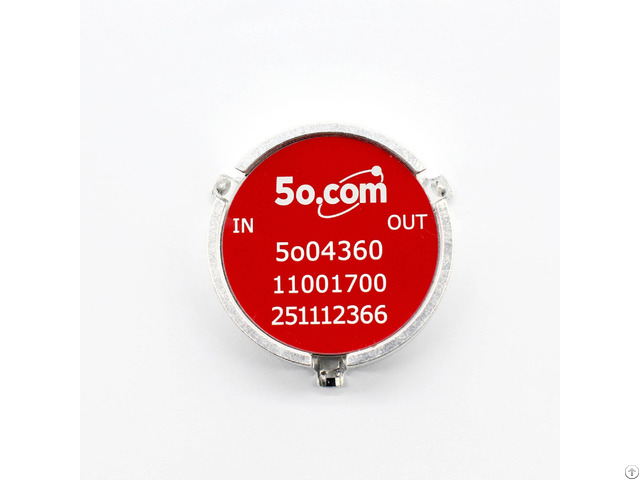

Surface Mount Isolator 1100 To 1700mhzsmt High Power 200w For L Band Systems - China
price: 45.00 Dollar US$
Product Features:
Model Number: 5o0436011001700
Frequency Range: 1100 to 1700MHz
Isolation Min: 15dB
VSWR Max: 1.45
Insertion Loss Max: 0.5dB
Connector Type: SMT (Surface Mount)
Forward Power: 200W
Reverse Power: 10W
Impedance: 50 ohm
Operating Temperature: -30 to +70 degrees C
Storage Temperature: -55 to +125 degrees C
Dimensions: Diameter 36 mm x Height 11 mm Applications:
RF power amplifier protection in L band communication systems
Satellite communication and navigation equipment
Military and aerospace radar systems
Medical and security communication devices
Broadband wireless and point to point radio links
Company Contact:
- Posted By: 5o.com
- Phone: 8613902992063
- Address: Software Industry Base, Shenzhen, 518000, China., Shenzhen , Guangdong , China
- Email:

- Website: https://www.5o.com/
Published date: December 11, 2025
- Business Description: 5o.
com is a modern high-tech enterprise specializing in the research, development, production, and sales of RF microwave passive components.
Focusing on independent innovation, the company primarily manufactures microwave passive components such as RF isolators, circulators, coaxial loads (terminals), coaxial attenuators, power splitters, waveguide-to-coaxial converters, directional couplers, filters, and duplexers/multiplexers.
These products are widely used in 5G communications, satellite navigation, radar electronic countermeasures, and aerospace applications.
We fulfill our corporate mission of achieving customer success with high-quality products, attentive service and outstanding social responsibility, and are committed to becoming a global benchmark in RF microwave components.
