Smt Led Pcb Fpc Solder Paste Printing Machine 6 200mm Sec Squeegee Speed - China

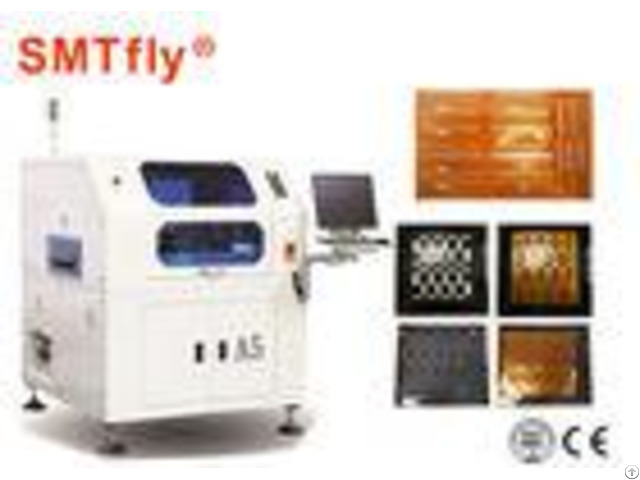

high accuracy smt led pcb fpc stencil printer for solder paste printing machine specificaiton: - - - - machine | smtfly-a5 | repeat position accuracy | 0.01mm | printing accuracy | 0.025mm | cycle time | <7s (exclude printing & cleaning) | product changeover | <5min | air required | 4.5~6kg/cm2 | power input | ac: 22010%, 50/60hz 1 3kw | control method | pc control | machine dimensions | 1220(l)x1355(w)x1500(h)mm | machine weight | approx: 1000kg | - - - - parts of the pcb solder paste printer machine description: 1 - scraper system * the arch bridge is suspended straight and straight * programmable suspension self-adjusting stepping motor drives the printing head * four-wheel positioning sliding rail structure of bilateral double-slide block ensures the accuracy and smoothness of operation before and after scraping * for before and after the squeegee pressure difference required and the stability of the lifting design, to prevent leakage of solder paste and blade clamping design has certain elasticity, squeegee pressure, lifting speed, the printing speed, print scope software is adjustable, and provides customers with a variety of tin under the demoulding ways to adapt to different requirements of pcb, for the customer provides a good platform for the control of printing; * slide rail scraper system to improve operation stability and prolong service life; full closed-loop scraper pressure feedback device, always monitor the pressure of scraper pressure, make the lower tin more full.

2 - steel mesh positioning system the size of steel mesh has good and wide applicability the imported smc cylinder is used as the cylinder.

embedded scale, never fall off segmented fixed steel frame.

3 - image and optical path system x, the y-axis uses the japanese black field high ground wire rod, the two ends japan matsushita motor drive internal increase polaroid, automatic accurate grasping different type of the mark point upper, lower and coaxial 3 uniform light source japan's toshiba industrial camera.

4 - pcb transportation and positioning system the inlet direction arbitrary selection, free combination special process of inner tooth transport belt, prevent card board programmable transport speed control can make the suspension more accurate use the right side clamp and vacuum suction chamber, effectively clamping the pcb to ensure the complete smooth contact between pcb and steel mesh.

5 - cleaning system spray type cleaning dry, wet, vacuum-free combination separate cleaning structures circular cleaning rubber strip cleaning fluid, and steel net cleaning paper amount controlled.

6 - platform calibration system uvw platform structure, high precision, large rigidity and compact structure triaxial linkage, small volume, high precision 7 - base and rack system solid formingpanasonic motor plus japan original plant high precision ground wire rod high rigidity, high stability of left and right symmetrical frame structure.

8 - electrical road system safe and concise circuit gas circuit layout the circuit gas road erect the two sides and the rear of the machine, the maintenance is convenient.

9 - operating system easy to learn easy to use friendly operation interface, with good man-machine dialogue function the program file has teaching and navigation functions, and every step has a hint switch between chinese and english it has operation log, fault recording analysis and diagnosis.

10 - other functional options automatic point glue function automatic scanning function automatic add tin function the whole line closed loop control constant temperature and humidity function steel mesh plugging function other functions can be customized according to customer's actual demand
