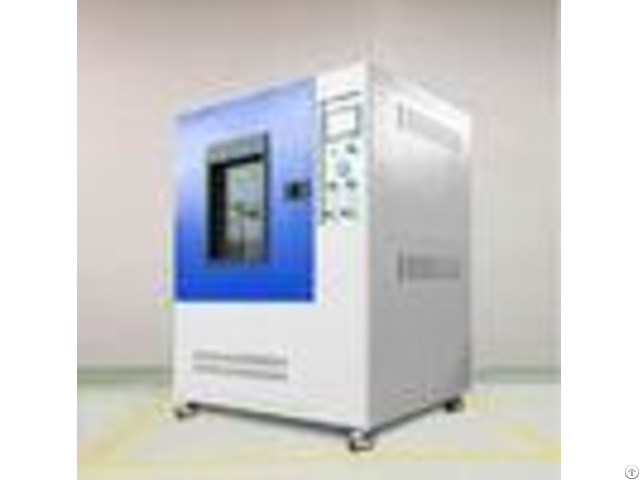

Remote Control Rain Spray Test Chamber Automatically Lift With Compressed Air Dry Function - China

IPx1-IP4 Rain Spray Simulation Environmental Test ChamberRemote control Rain Spray Simulation Climaticr for Instruments and Apparatuse Detailed Product Description - - - - IP Class: | IPX1, 2, 3, 4 | Test Chamber Size: | All Size Can Customize | R400mm: | R400mm Or R500mm | Controller: | PID Buttom Type Or PLC Touch Screen | Sample Shelf Size: | D400mm | Power Source: | AC220V 50HZ Or Customize | - - - - PX1/2 Vertical Rain Drop Test 1 - Meet the requirement of IEC60529 standard IPX1 vertical rain drop test and IPX2 15inclination rain drop test.

2 - Rainfull capacity: IPX1: 1 0.5mm/min IPX2 : 3 0.5mm/min 3 - Water drop chamber effective dripping area: 1000*1000mm, water droping hole diameter: 0.4mm, hole distance: 20*20mm 4 - Water drop chamber uses vaccum design, match with oxidation alloy aluminium and high rust stainless steel material structure, nozzle contact a brass tapered design, convenient in installation and replace needle tip.

5 - Rain drop device can automatically lift, nozzle is located in 200mm from the highest point of test sample, and equipped with protection devices to ensure it would not drop too fast.

It can also lift manually.

6 - With compressed air dry function, when the experiment is complete but will drop out the excess water clean, avoid long time water dirty jams needle tip.

7 - Dc electric lifting motor drive, stainless steel wire rod, pulley guide with locking nut lifting device.

8 - Aluminum alloy and stainless steel fuselage; Hang to the wall or four column equality lifting.

IPX3/4 Vertical Rain Drop Test 1 - Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.

2 - The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position.

During test, the sample would spin around the center line.

3 - Swing pipe standard configuration: R600mm and R1000mm two types.

Swing pipe inner diameter: 15mm.

Dill0.4 holes and make the water spray to the center.

The water pressure of the device entrance is equal to 10m water level, spraying water pressure is 80-100kpa.

4 - Water spraying pipe swing angle: 120, 180, 360, Vertical sides: 60, 90, 175 - Complete a swing(2*120) time is 4S.

Complete a swing(2*360) time is 12S.

5 - Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe Angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.

6 - Use Mitsubishi PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.

7 - Servo drive mechanism, guarantee the pendulum pipe Angle of precision, the overall pendulum tube structure for hang a wall.

- - - - Pendulum tube radiusmm | IPX3 | IPX4 | Blowhole number | Total Flow | Blowhole number | Total Flow | L/min | L/h | L/min | L/h | 400/500 | 25 | 1.8 | 108 | 37 | 2.6 | 156 | - - - - Prouduct Display After-sales service # We deal with your complains within 24 hours.

# Training how to install the machine, training how to use the machine.
