Ingke Ykg 862119nl Direct Substitute Te 1840855 1 2 Port 1000 Base T Rj45 Magnetic Jack Through Hole - China

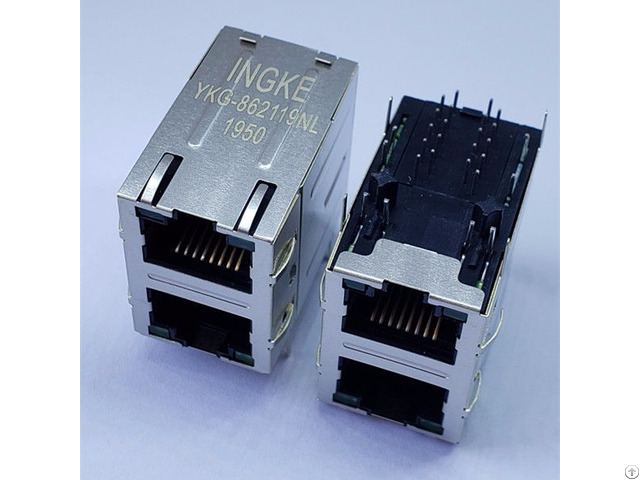

INGKE YKG-862119NL Direct Substitute TE 1840855-1 2 Port 1000 Base-T RJ45 Magnetic Jack Through Hole TE Part Number: 1840855-1

Made in China: YKG-862119NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 2

Number of Rows: 2

Applications: 10/100/10 00 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Green - Green

Number of Cores per Jack: 8

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Up and Down

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 30µin (0.76µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;

2301995-4 2301995-4 1-2301994-0 1-2301994-0 1-2301994-2 1-2301994-2 6-2301994-0 6-2301994-2 5-2301995-4 6-2301994-1 2301996-6 2301996-6 2301996-5 2301996-5 2301996-1 2301996-1 2301996-2 2301996-2 5-2301996-1 5-2301996-2 2301997-5 5-2301996-5 5-2301996-6 2301996-8 2301996-8 2301996-7 2301996-7 2301996-3 2301996-3 2301996-4 2301996-4 2301997-4 5-2301996-4 5-2301996-3 2301997-7 5-2301996-7
