Cbb60 Ac Motor Start And Run Capacitor - China

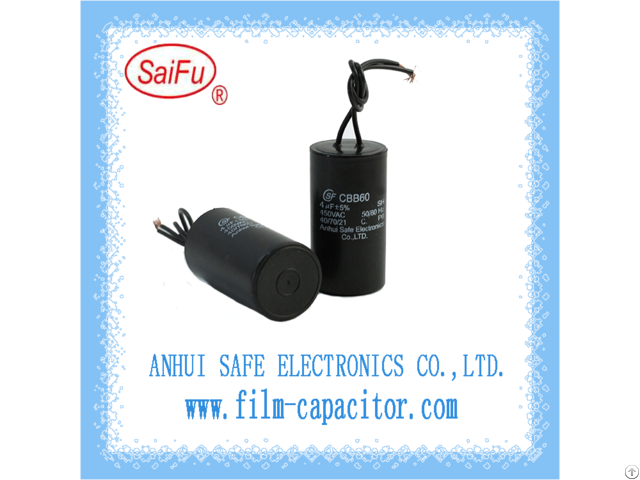

1 - CBB60 AC Motor Start and Run Capacitor

The CBB60 capacitor has a cylindrical aluminum case, riot gear and solder structure.

The bottom of the capacitor can also be bolted and drawn out with flexible wires .

The capacitor has small size, light weight and good self-healing.

It adopts zinc-aluminum edge thickening evaporation process, so it has excellent electrical performance and high reliability.

The unique sophisticated technology enables the capacitor to withstand large surges and high voltages.

It is suitable for the frequency of 50Hz/60Hz ac single phase motor to start and run power.

The shape of the motor capacitor is cylindrical, ABS or PBT plastic enclosure.

It has self-healing property, good stability and reliability.

2 - Specificatons

Reference standards: GB/T 3667.1(IEC60252-1)

Climatic category: 40/70/21, 40/85 /21

Class of operation: Class B(10000h) Class C(3000 h)

Class of safety protection: S0/S3

Voltage range: 250VAC, 370VAC, 4 40VAC, 450VAC

Capacitance range: 1~35uf

Capacitance tolerance: ± 5%, ±10%, ±15%

Dissipation factor: 20*10-4(100Hz, 20ºC)

Test voltage terminal to terminal UTT: 2Un for 2 seconds

Test voltage terminal to case UTC: (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds

Insulation resistance: ≥ 3000s(100Hz, 20 ºC, 1min)

3 - Applications

(1)Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.

(2)Used for Washing machine, Refrigerator, Water pump,etc.

4 - Our Advantages

(1)Leading Technology

*Professional manufacturing capacitor film for decades;Adopt advanced technology to ensure the reliability of products;A number of professional invention patents.

(2)High Quality Products

*Buy new equipment;Continuous innovation in the traditional production process; Quality management service center, quick response service within 24 hours.

(3)Fast Delivery

*Experienced management team, can adjust the flexible delivery time according to customer demand.

(4)Government Support

*Our company was awarded “National High-tech Enterprise ”for three consecutive years;2018 National Intellectual Property Advance Enterprise;2019 Tongling advanced group award.

Build tomorrow's business with today's service!

Welcome to contact with us!

Company Contact:

• Posted By: Anhui Safe Electronics Co.,Ltd.

• Phone: +8613305620368

• Address: Qi Feng Road, Shizishan Development Area, Tongling City, Anhui Province, China, Tongling , Anhui , China

• Email:

• Website: http://www.film-capacitor.com

• Business Description: Anhui Safe Electronics Co.,Ltd. founded in February 2007,is a joint-venture which is invested by Green Group(U.

  K).

  The company is located in Tongling,Anhui,China,spec ialized in manufacturing metallized film for capacitor use and metallized film capacitors.

  Our quality management systems are certified by ISO9001 and our products have CQC,TUV,UL,VDE and other performance certifications,compliance with EU ROHS directive,with SGS report.

  As a high technology enterprise,we focus on the new energy field and commit to be a world-class supplier.
