  • 22kw Power Steel Hole Punching Machine C Frame Casting Fuselage J23 Series - China

    price: check with company for price

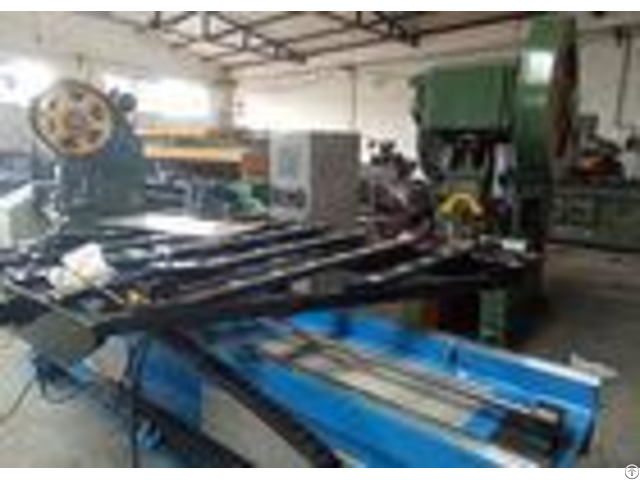

    Latest Technology CNC Sheet Metal Punching Machine For Punching Sheet full automatic sheet metal perforating machine Main Features: 1 - J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.

    2 - C-frame Casting fuselage, maximum rigidity and minimum deflection for accurate parts and long tool life.

    body can be tilted,, high rigidity and less deformation Compact.

    Thick plates and large columns provide you with the stable platform you need for your demanding application.

    3 - The Machine use Rigid rotated bond clutch rigid and well supported.

    The clutch gives continuous strokes for mass production.

    4 - Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.

    5 - Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.

    6 - Gear are of steel cast or fabricated.

    Gear teeth are generated by precision hobbing machine.

    7 - Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.

    8 - Protective fence and the safety interlock to ensure the operation safety.

    Have a movable single-hand pedal switch, easy to operate.

    Packing Detailed specification of perforated sheet machine: - - - -

    Type | ZCX-A20 | ZCX-B10 | ZCX-150 | ZCX-300 | Max.

    Thickness | 1.0 mm | 1.0 mm | 1.0 mm | 1.0 mm | Width | 500 mm | 500 mm | 1000 mm | 1000 mm | Stroke Per Minute | 180/min | 200-400/min | 150/min | 300/min | Distance of Feed | 0-1.2 mm | 0-1.6 mm | 0-1.2 mm | 0-4 mm | Max.

    LWD of Mesh | 20 mm | 10 mm | 25 mm | 25 mm | Motor | 2.2 KW | 2.2 KW | 3 KW | 5.5 KW | Weight | 950 Kg | 950 Kg | 2000 Kg | 2050 Kg | Measurement (mm) | 1090x710x1450 | 1090x710x1450 | 1800x1320x1550 | 1470x850x 1630 | - - - - The products of perfoate sheet machine: The mouldofperfoate sheet machine:


    Company Contact:


    • Phone: 86-311-83076968

    • Address: North of the Weimin Street Anping County Hengshui Hebei China, Hengshui , Hebei , China

    • Email: Email

    Published date: January 9, 2018

    • Business Description: Established in the year of 2000, after that we are specialized in the R&D, production and selling about the wire mesh and wire mesh machines.

      Making a good advantage of the development of the wire mesh, we are going the way of standards-stop service system.
