Wifi Sip Phone - China

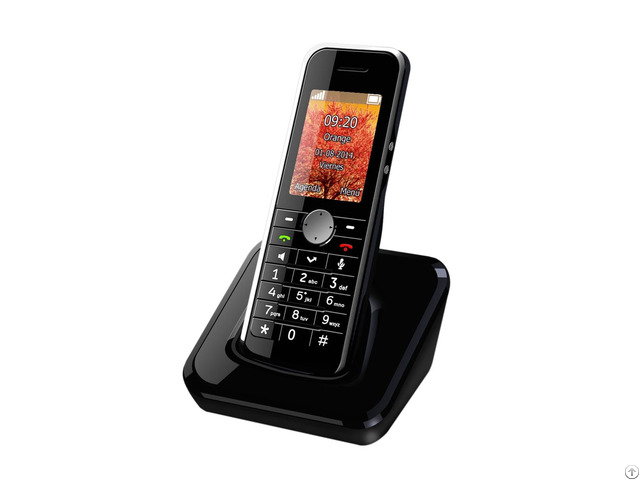

D168IW, one new generation WIFI SIP cordless phone, based on mobile

platform, solved two key defects of former cordless WIFI device:

-too much power consumption in WIFI mode, which out of battery support

-roaming between different APs The mobile platform is high integrating system with Bluetooth / wifi client /

3G or 4G mobile connection possibility, with flexible power management, which extends unit working hours as normal cordless phone.

Broadsoft compatible SIP phone firmware make sure unit working well in:

-Uniformed Communication System as cordless VOIP phone

-or connecting to home medium gateway, to supply voice service from Telco.

HIGHLIGHTS

> High compatibility to most WIFI network to transmit SIP voice

> Normal standby & working hours as normal cordless phone

> 3G/4G Mobile network support (option) PHONE FEATURES

> 2 VoIP accounts

> Call hold, mute, DND

> One-touch speed dial, hotline

> Call forward, call waiting, call transfer

> Group listening, SMS, emergency call

> Redial, call return, auto answer

> 3-way conferencing

> Direct IP call without SIP proxy

> Ring tone selection/import/delete

> Set date time manually or automatically

> Dial plan AUDIO FEATURES

> HD voice: HD handset, HD speaker

> Codec: G.

722, G.

711 (A/μ), G.

723, G.

729AB, G.

726, iLBC

> DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO

> Full-duplex hands-free speakerphone with AEC

> VAD, CNG, AEC, PLC, AJB, AGC NETWORK AND SECURITY

> Wi-Fi client

> WAN Supports PPPoE, static IP, dynamic IP

> NAT&NAPT with VPN pass-through Virtual Server

> Automatic receipt of IP address with DHCP Server

> Security through WEP, WPA-PSK, WPA2-PSK, WDS and build-in firewall

> Simple handling and management over web interface

> SIP SMS/Voice call to control router to be online and offline (optional)

> SIP v1 (RFC2543), v2 (RFC3261)

> Call server redundancy supported

> NAT transverse: STUN mode

> Proxy mode and peer-to-peer SIP link mode

> IP assignment: static/DHCP/PPPoE

> HTTP/HTTPS web server

> Time and date synchronization using SNTP

> UDP/TCP/DNS-SRV(RFC 3263)

> QoS: 802.1p/Q tagging (VLAN), Layer 3

> ToS/DSCP

> SRTP for voice

> Transport Layer Security (TLS)

> HTTPS certificate manager

> AES encryption for configuration file

> Digest authentication using MD5/MD5-sess

> OpenVPN, IEEE802.1X MANAGEMENT

> Configuration: browser/phone/auto-provis ion

> Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy

> BroadSoft device management

> Phone lock for personal privacy protection

> Reset to factory, reboot

> System log Wi-Fi

> IEEE 802.11b/g/n, IEEE 802.3, IEEE 802 - 3u

> Frequency from 2.4GHz to 2.483GHz

> Data rate Speed up to 300Mbps

> Channel bandwidth: 20MHz/40MHz
