We 7499010214 Ykju 8060bnl 10 100 Base Tx 1 Port Through Hole Rj45 Magnetic Jack Connectors Tab Up - China

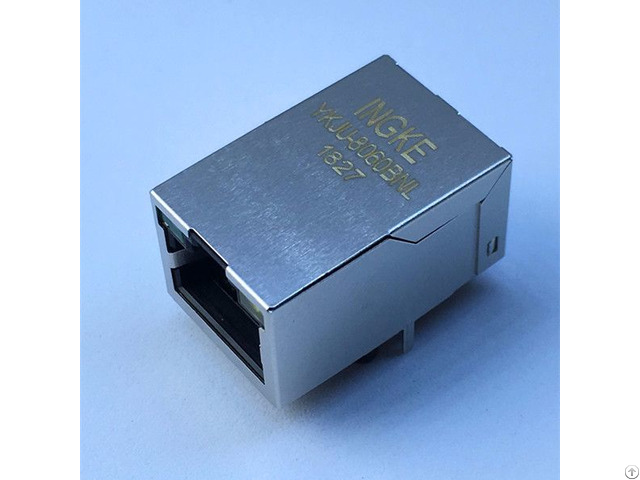

Ingke YKJU-8060BNL 100% cross 7499010214 10/100 Base-TX 1 Port Through Hole RJ45 Magnetic Jack Connectors Tab-Up Part Number : 7499010214

Made in China: YKJU-8060BNL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-TX, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 4

Shielding : Shielded

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

74990110010 MIC24013-0102T-LF3 MIC24111-0108T-LF3 MIC24112-0101T-LF3 MIC2411D-0117T-LF3 MIC24120-5101W-LF3 7499031120A 7498011121 7499031211 7499211003 7499411001 7499111614A 7499111005 7499511001A 7499011122A 7499211123A 7499111614 7499311001

7499511001 7499511611

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
