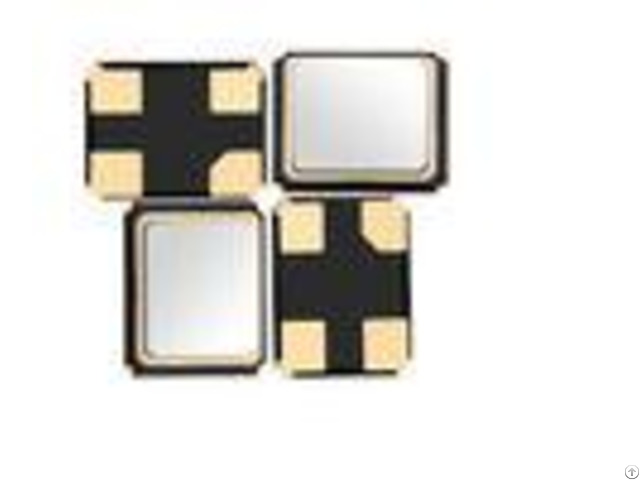

Ultra Stable Electronic Crystal Oscillator 24 000mhz 10ppm 12pf Lead Free - China

3225 24.000MHz 10PPM 12PF Consumer Electronics Crystall 4G Bluetooth Module Productdescription Frequency Voltage Control Linearity: Output Frequency vs.

Ideal (Line) Function - A measure of the input control voltage transmission characteristic that represents the permissible non-linearity of the frequency offset over the entire range as a percentage.

Description: The typical VCXO frequency voltage-controlled linearity is: 10%, 20%.

Simple VCXO frequency-controlled linearity calculation method (when the frequency controlled voltage polarity is positive): Frequency Voltage Control Linearity = ((fmax-fmin) / f0) 100% Fmax: VCXO output voltage at maximum voltage Fmin: Output frequency of VCXO at minimum voltage-controlled voltage F0: voltage control center voltage frequency Single-sideband phase noise (f): Deviation from carrier f, the ratio of the power density of a phase-modulated sideband to the carrier power.

Output waveform: From the category, the output waveform can be divided into two types of square wave and sine wave.

Square wave is mainly used for digital communication system clock, the main square wave output level, duty cycle, rise / fall time, drive capacity and several other indicators.

Product Advantage The new Tianyuan in R & D, design, manufacturing, marketing and service as a whole, have a hundred grade purification workshop.

The international advanced automated production lines, special test equipment, the latest technology and professional and technical personnel; has been preparing for the new Tianyuan own industrial park, to further expand the research and production of the higher requirements of the product.

Product specification - - - - Type | 3225 | Frequency Range(MHZ) | 24.000MHZ | Frequency Tolerance(at25) | 10PPm, 5PPm at25+/-2 | Frequency Stability vs.

Temp(FL-T) | 10PPm, 20PPm, 30PPm | Operating Temperature range | -20~+70 -40~+85 | Storage Temperature range | -45~+80 | Temperature Characteristics | 10PPm 20PPm | Load Capacitance | 8 to 20 Pf or Serles | Aging | 3 PPm/year | Insulation Resistance | 500M(DC100V15V) | - - - - Dimension Frequency change: 5ppm FAQ Packing 3000pcs/tape.

Samples and technical support can be provided free of charge.
