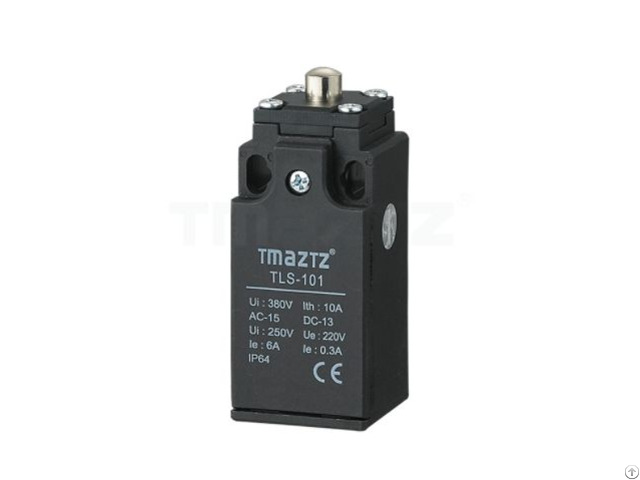

TLS-101 sealed plunger actuator Limit Switch

What is mini limit switch?

A small limit switch is a mini switch that can be mounted on a relatively stationary object (such as a fixed frame, door frame, etc., referred to as a stationary object) or on a moving object (such as a traveling car, door, etc., referred to as an animal).

When the animal is close to the static object, the linkage of the switch drives the contact of the switch, causing the control circuit to close the contact to break or break the contact to close.

By the switch contact open, close the state of the change control circuit.

And limit switches are actually the most common sensing device in industrial control, providing an electrical signal when an object physically touches and moves an actuator.

Due to their easy installation, reliability and rugged design, they are suitable for a wide range of applications and harsh environments.

Limit switches are available in a variety of configurations, such as rollers, plungers, etc., and we can make them to your specifications.

Contact us! Characteristics

Operation speed 0.5mm-50cm/sec

Operating frequency Electical: 30 operations/minute

Contact resistance 25mΩ max.

(initial value)

Insulation resistance 100mΩ min.

(below 500VDC)

Dielectric Strength 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts 1500VAC, 50/60 Hz for 1 minute between each terminal and ground

Vibration 10-55Hz, 1.5mm double amplitude

Shock Mechanical durable: 1, 000m/Sec2 (about 100G'S)

Malfunction: 300m/Sec2 (about 30G'S)

Ambient Temperature -10~+65℃ (With no icing)

Humidity <95% RH

Weight About 59 to 72g(TLS-1)

About 72 to 123g(TLS-3)

Electrical Life Above 500000

Degree of protection IP65 Operating Characteristics

Operating Characteristics Model 101

301 103

303 111

311 121

321 127

327 131

331 161

361 171

371 181

381 191

391

Operating force OF (Max) 6.86N 6.86N 6.86N 4.9N 6.86N 4.9N 0.98N 0.98N 0.98N 4.9N

Release force RF (Min) 1.96N 1.96N 1.96N 0.98N 1.96N 0.98N 0.392N 0.392N 0.392N 0.98N

Pre-travel PT (Max) 1.8mm 1.8mm 1.8mm 20° 1.8mm 20° 30mm 30mm 30mm 20°

Tripping position TP±10% 2.0mm 2.0mm 2.0mm 22.5° 2.0mm 22.5° 22.5° 22.5° 22.5° 22.5°

Movement differential MD (Max) 1.2mm 1.2mm 1.2mm 10° 1.2mm 10° 14° 14° 14° 10°

Over travel OT (Min) 4.0mm 4.0mm 4.0mm 75° 4.0mm 75° 20mm 20mm 20mm 75°

Total travel TT (Min) 5.8mm 5.8mm 5.8mm 95° 5.8mm 95° 50mm 50mm 50mm 95°

Rotary indexing 22.5° 22.5° 22.5°
