    • Smt Reflow Oven Kte 1200 - China

    price: 4000.00 Dollar US$

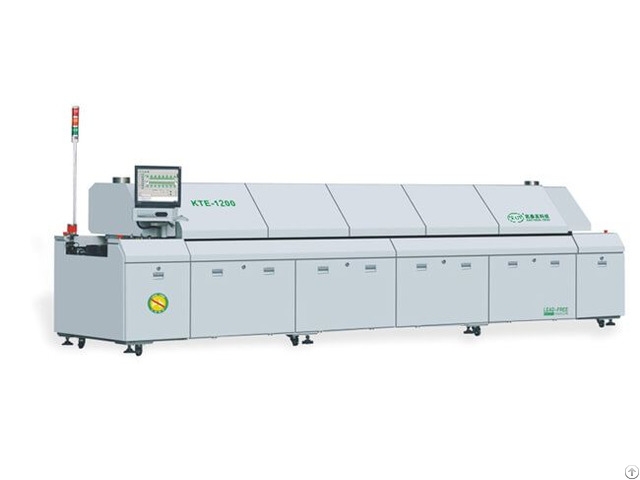

    Smt Reflow Oven Kte 1200

    Products Photos Catalog Smt Reflow Oven Kte Photos Catalog

    12 Zones Economical SMT Reflow Oven KTE-1200 Products description Features:

    1 - Totally meet various requirements for the lead free processing.

    2 - WindowsXP operation system, Chinese/English can be swtiched online.

    3 - Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.

    4 - PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.

    5 - Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.

    6 - Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.

    Machine Specification Model KTE-1200 Control Industrial computer Heating zones qty.

    Top 12, bottom 12 Cooling zones qty.

    Top 2 Heating zone length 4675mm Current plate structure Galvanized plate Weight Apprx: 2930KG Dimension 6960*1360*1490mm Exhaust capacity 12㎡/min×2 Color Grey Control system Electricity supply 3P 380V/220V 50/60HZ Temp.

    control range Room temp.

    ～300℃ Total power 99KW Temp.

    control accuracy ±1℃(static state) Start power 44KW Temp.

    control method PID +SSR drive Consumption power 12KW PCB temperature deviation ±1.5℃ Speed control Inverter adjust Data save All profiles can be saved Warm up time Apprx.

    30minute Abnormal alarm High, low temp.

    alarm Conveying system Rail structure 2 Sectional structure Rail fixed method Front fix Chain Stuck-free type Conveying height 900±20mm PCB Max.

    width 50-400mm Conveying method Mesh+ chain Component height Top/bottom 25mm Conveying speed 300-2000mm Conveying direction Left to right Lubrication Automatic Cooling system Cooling method Forced air cooling Heating features Heating zones Top 12, bottom 12(4675mm)can meet the need of the peak lead-free technique.

    Cooling zones After cool down by air, PCB temp.

    is ≤70℃ at the exit.

    Warm up time From the normal temp.

    to set temp, approximate 30 minutes.

    Warm up sequence Warm up from two side, save the power and time Profile transfer time ＜15min Heating zone temp.

    control accuracy ±1℃ PCB temp.

    deviation ±1.5℃ Empty to full load heat balance respond time ≤20 s


    Company Contact:


    • Phone: 13479678047

    • Address: 94# Guangtian Road Songgang street Bao'an District Shenzhen China, Shenzhen , Guangdong , China

    • Email: Email

    Published date: May 17, 2020

    • Business Description: we are professional smt equipment manufacturer from China .

      we offer a whole line SMT solution.

      We prouduce the following equioment: PCB loader,reflow oven,wave soldering,pick and place machine,stencil printer.
