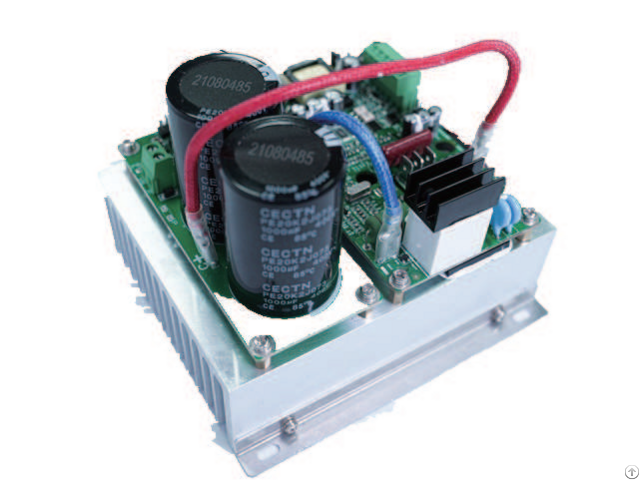

Rvf 8232 802b - China

Model number Control method V/F For induction motors

Single-phase 220 to three-phase 220

Product Model Rated Input Voltage V Rated Input Current A Input frequency Hz Output

Voltages

V output power W Output current A

RVF-8232-1500 802B 220 14 50/60Hz 220 1500 7.5

RVF-8232-2200 802B 220 17.5 50/60Hz 220 200 9.6

Technical specifications

Electrical Specifications Input voltage Three-phase 380V±10% Input frequency 50Hz/60Hz

Output Voltage 0~Input Voltage output frequency 0~500.0Hz

Performance specifications control method V/F control, SVC control

Overload capability 150% of rated output current for 60s, 180% of rated output current for 10s

Speed resolution Digital setting: 0.01Hz Analogue setting: 0.1%*maximum frequency

Protection mechanisms Output phase failure protection, over-current protection, over-voltage protection, under-voltage protection, over-heating protection, overload protection, etc.

Multiple Self-Learning Modes synchronous machine 3 types synchronous machine 2 types

Multiple frequency sources 0: digital setting (preset frequency P0-08, UP/DOWN can be modified, no memory for power down)

1: digital setting (preset frequency P0-08, UP/DOWN can be modified, memory for power down)

9: Communication given

Terminal Specifications DI1, DI2 Multi-function digitally isolated input terminal receives handle up/down, t wo-speed commands default DI1 - forward rotation, DI2 - reverse rotation

24V Fan Power Supply, 24V Load Capacity 100mA

external interface Debugging Tools external keyboard

Environmental characteristics operating temperature -10ºC~+40ºC

storage temperature -40ºC~+70ºC

humidity level Less than 95% RH, no water droplet condensation
