Quartz Blanks Supplier - China

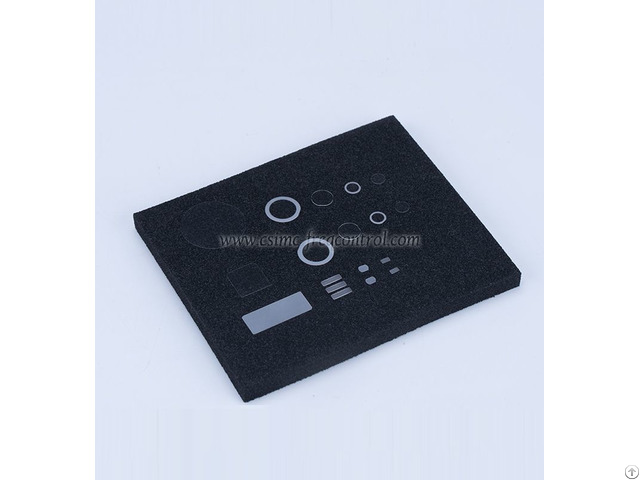

Quartz Blanks

This material consists of single-crystal right-handed a-quartz artificially grown bars which is intended for use in fabrication of piezoelectric for such as timing frequency control and frequency selection under hydro-thermal condition on a seed with its length along the Y axis.

piezo single crystal blank Product Parameters

Material Quartz Blanks( Piezo Grade)

Materials Both Pure Z and Y Bar available

Synthetic Q-Value Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC

Etch Channel Density Max 10/c㎡, Max 30/c㎡, Max 100/c㎡, Max 100/c㎡, Max 300/c㎡; Swept

Inclusions Density Ia, Ib, I, II, III

Cut Type AT, BT, CT, DT, GT, NT, FC, SC, IT, …, etc

Angle Tolerance(±) Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, …, etc Phi Angle: ±5′, ±10′, ±15′, ±30′, …, etc

Diameter For Round Blank From 3.0mm to 50.80mm (with flat)

Size For Square Blank 1.6x1.6mm ～ 38x38mm Frequency 1 Mhz up to 54Mhz for AT-Cut Fundamental; Upto 70Mhz By Etching

Flat As request the flat shall be perpendicular to X axis within ±10 deg

Surface Finishing #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)and & etched Std

Overtone Fundamental; Third Overtone (3rd); Fifth Overtone (5th)

Contouring (Diopter) Plano-Convex: 0.5 Diopter ～ 10 Diopter Bi-Convex: 10 Diopter ～ 15 Diopter

If you have any question on LN wafer, LT wafer, saw filters, piezo single crystal blanks, bio sensor and optical grade lithium tantalate wafers, We will give the professional answers to you.
