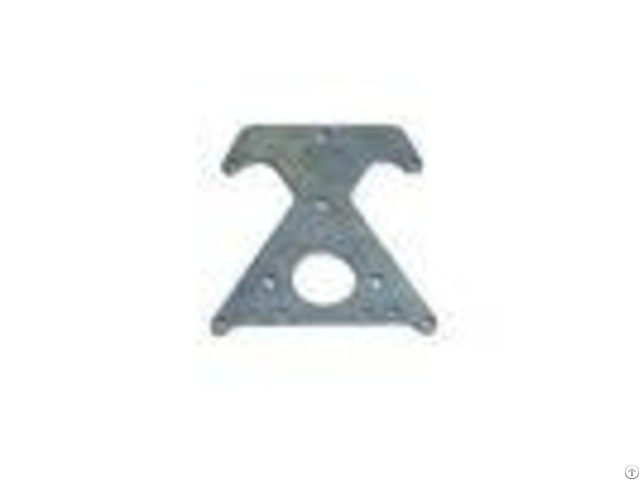

Long Durability Yoke Plate For Assembling Suspension Insulator To String - China
price: check with company for price
Hot Dip Galvanized Steel Yoke Plate Type LX For Overhead Lransmission Line Quick Details - - - - Place of Origin: | Guangdong, China (Mainland) | Model Number: | LX | Material: | Hot dip galvanized steel | Usage: | Overhead Transmission Line | Stability: | High | Antivibration: | High | Durability: | Long | Operation: | Convenient | - - - - Packaging & Delivery Packaging Details: In wooden box Delivery Time: Within 2 months Description Link fitting to connect insulator and fittings on ultra voltage transmission line.
LXType Yoke Plate is suitable for assembling the suspension insulator to string, and it is also used for connection of one or several strings insulator and then suspending on the pole arm of perch as well as connecting of suspension clamp and dead end clamp & connection between stay wire and perch.
Technical Parameters - - - - Catalog No.
| Dimensions(mm) | Rated Failure Load (kN) | Weight(kg) | L | h | d1 | d2 | d3 | b1 | b | S | LX-1645 | 450 | 95 | 20 | 26 | 18 | 18 | 18 | 80 | 160 | 26.0 | LX-2145 | 450 | 95 | 18 | 30 | - | 26 | 18 | | 210 | 25.1 | LX-2145S | 450 | 95 | 18 | 26 | 18 | 20 | 16 | 80 | 210 | 21.3 | LX-2150S | 500 | 95 | 18 | 26 | 18 | 20 | 16 | 80 | 210 | 25.5 | LX-2545 | 450 | 95 | 20 | 33 | 18 | 30 | 18 | 80 | 250 | 25.5 | LX-2145A | 450 | 95 | 20 | 33 | 18 | 26 | 18 | 80 | 250 | 25.5 | LX-3045 | 450 | 95 | 24 | 39 | 14 | 32 | 18 | 80 | 300 | 27.1 | LX-3245 | 450 | 95 | 20 | 39 | - | 32 | 18 | | 320 | 27.4 | LX-3250S | 500 | 95 | 18 | 33 | 18 | 28 | 18 | 80 | 320 | 28.5 | LX-4245 | 450 | 100 | 22 | 39 | 18 | 22 | 22 | 60 | 420 | 35.4 | LX-4245S | 450 | 100 | 20 | 39 | 18 | 32 | 18 | 80 | 420 | 23.9 | LX-2150S | 450 | 95 | 20 | 39 | 18 | 32 | 18 | 80 | 420 | 29.0 | LX-6450S | 500 | 95 | 20 | 45 | 18 | 36 | 18 | 80 | 640 | 30.5 | LX-8045S | 500 | 1520 | 26 | 51 | - | 36 | 20 | - | 840 | 37.8 | - - - -
Company Contact:
- Phone: 86-20-82970993
- Address: Shihushan,Yonghe Village,Xintang Town,Zengcheng,Guagnzhou City,Guangdong Province,P.R.China-511356 , Guagnzhou , Guangdong , China
- Email:
Published date: March 12, 2018
- Business Description: Fogang Xinyuan is the solo manufacturer for ACMCC conductor (Aluminium Conductor Multi-strand Carbon Fiber core) in China.
ACMCC is designed for double capacity of power transmission.
ACMCC Conductors can meet the requirements of ASTM, EN, BS and IEC etc.
