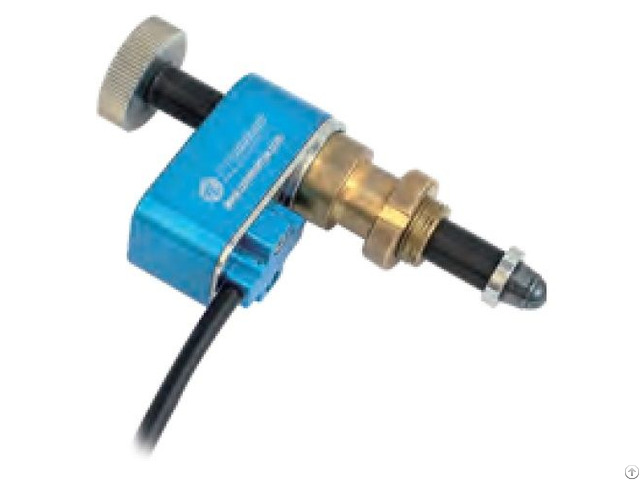

Linear Piezoelectric Motor Piezo Actuator For Optical Path Adjusting - China
price: contact company for price
The linear piezo motor has the resolution of more than 20nm in full stroke, rated load of 25N, compact design, excellent long-term stability, and can continue to remain at the set position in the event of a power failure.
It can be used for touch-free adjustment of hard-to-reach optical adjustment frames, and adjustment of optical frames that are sensitive to force when turning the knob (such as laser cavity adjustment or longdistance beam pointing adjustment).
Characteristics
Min step: <20 nm
Compact design
Self-locking at rest, requires no current
Lifetime >10 steps
Optional vacuum version Technical Data
Type: N81.8K
Travel: 8mm
Min.
step: <20nm±20%
Load capacity: 25N
Speed: 3mm/min±10%
Position hold deviation at power up or down: <20nm
Operating temperature: 10~40℃
Mass with cable: 80g±5%
Material: Steel, Aluminum
Cable length: 2m±10mm
Recommended controller: E53 - C4K
PZT connector: RJ11
Note: UHV version is available.
Custom closed-loop version is available.
You can contact us for other specifications and models.
Company Contact:
- Posted By: CoreMorrow Ltd.
- Phone: 0451-86268790
- Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin，China, Harbin , China , China
- Email:
- Website: http://www.coremorrow.com/en/
Published date: April 18, 2024
- Business Description: CoreMorrow Ltd. focuses on research，development, production and sales of nanoscale precision positioning products, mainly in the service of high-end precision equipment manufacturers.
After nearly 20 years of rapid development, our market has covered all well-known colleges and universities, research institutes, and high precision equipment manufacturers, and exported to Europe, America, Canada, Singapore, Japan, Korea and other countries.
We have established partnerships with a number of high-tech enterprises, state key laboratory, has become Chinese most professional precision positioning products manufacturer.
