Lighting Electrical Thermal Battery Motor Protection Micro Switch - China

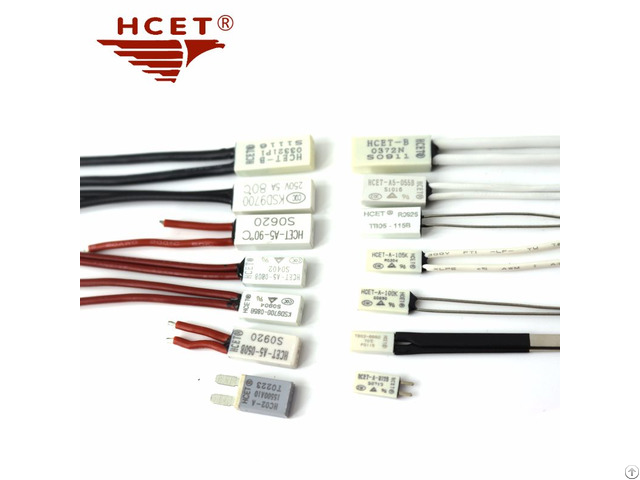

HCET-A/TB02 series is a precise protector with small size.

It is sensitive, accurate and reliable, especially suitable for heat cable, battery protection board, micro-motor and security protection of transformer.

The patent number: ZL2013 20699495.2 Special Features: Small size, Installation is more flexible and convenient; Have the stable work characteristics and excellent reliability; Sensitive temperature and snap action; Nickel and wires are optional; Each type of parts strictly implemented European ROHS environmental standards; Terminals are optional with normally closed Model B and normally open Model K Electrical Characteristics: 2.5A/250 V AC 5A/120 V AC 10A/12 V AC 5A/24 V AC Technical Parameters: Action temperature from 30℃-155℃, Every 5 ℃ a specification.

Temperature is optional and customized.

Temperature tolerance: ±3℃, ±5℃.

Main Applications are as follows: Battery pack, Li battery protect board Electrical tools PC board, temperature sensitive cable Heating-pads, electrical blankets Fluorescent ballasts and lightings, transformers

Company Contact:

• Posted By: Nanjing Haichuan Electroic Co.,Ltd

• Phone: 18013321277

• Address: No. 1202, Liuxin Road,Luhe Development, Nanjing, Jiangsu, China, Nanjing , Jiangsu , China

• Email:

• Website: http://www.hcet.cn

• Business Description: Nanjing Haichuan Electronic Co., Ltd., located in Nanjing Fourth Bridge Economic Park, is a

  professional company of producting, designing of high-end motor protector, over current protector, thermal protector, high tech enterprise of temperature control switch and temperature controller.

  The company has a complete and scientific quality management system,

  Nanjing Haichuan electronic limited company's good faith,

  strength and quality of products to obtain the unanimous endorsement of the industry.

  Company has the ISO/TS16949 quality management system certification, has a number of

  independent patents, Products pass the UL, VDE, CQC international security certification, the introduction of Japan, Taiwan advanced automation equipment, the production of a wide range of products Application in the glass elevator motor, wiper motor, juice machine, mixer, small tubular motor, power tools, batteries, transformers and other fields.
