Jxr0 0011nl Ykjd 8029nl 10 100 Base T Tab Down Rj45 Magnetic Modular Jacks - China

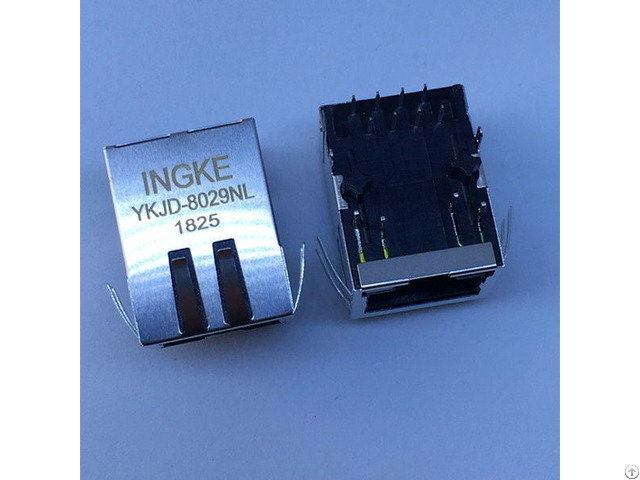

Ingke YKJD-8029NL 100% cross JXR0-0011NL Single Port Tab-Down RJ45 Magnetic Jack Connectors Through Hole 10/100 Base-TX, AutoMDIX Part Number : JXR0-0011NL

Made in China: YKJD-8029NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-TX, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 4 Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic

Manufacturer: Ingke Technology Co., Ltd

Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: (1).

OEM factory for Connector more than 10 years.

(2).

Cost reduction, lead time within 1 week, FREE samples.

(3).

After sales services 24*7 to help you solve any kind of problems

(4).

Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%, moreover the price are more competitive for 5-10% over the market

(5).

Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)

Ingke Technology Mass production of the following models;

J1011F21PNL JG0-0023NL JG0-0024NL J8064D648ANL JG0-0025NL J8064D628ANL JT4-1108HL JTH-0024NL JG0-0129NL JD2-0001NL J00-0063NL J00-0042NL J0C-0005NLT JD0-0001NL JD1-0001NL J0006D01BNL J0011D01BNL J0011D21BNL J0026D21BNL J3011G21DNL JXR0-0015NL JXR0-0011NL JXR1-0015NL J1026F01PNL J1026F21CNL JP011821UNL J3026G21DNL JK0-0136NL J0G-0003NL J0G-0001NL J0G-0009NL JY0-0016NL J8064E62NL JW0-0006NL JW0-0013NL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
