Ingke Ykj 802119bnl 100 Percent Cross Rjmg121532110er 2 Port Rj45 Jacks With Integrated Magnetics - China

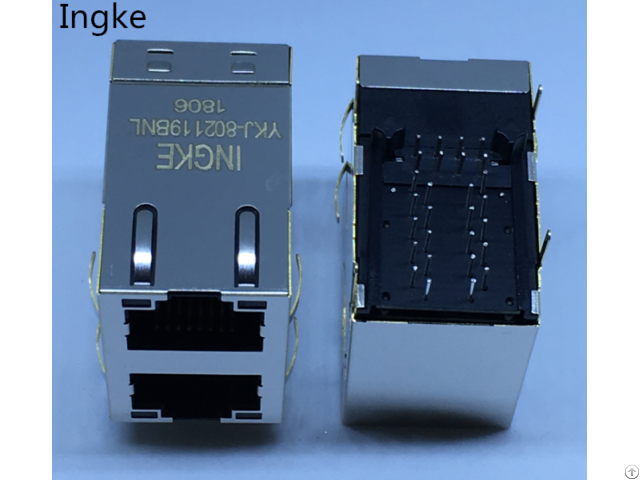

Ingke YKJ-802119BNL 100% cross RJMG121532110ER 2 Port RJ45 Jacks with Integrated Magnetics Part Number : RJMG121532110ER

Made in China: YKJ-802119BNL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 2

Number of Rows : 2

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green-Yellow Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up and Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

RJMG163128101NR RJMG231022830ER RJMG2018344A1ER RJMG214034460NR RJMG214034430NR RJMG201220030NR RJMG2012211A0FR RJMG2010S9930NR RJMG241102670CR-A RJMG1BD3B8K1ANR RJMG20162141BER RJMG22213216MER RJMG2310228A0ER RJMG2012119A0NR RJMG233022610ER RJMG201031110NR RJMG212032110NR RJMG241102670CR

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: https://www.ingketech.net/

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
