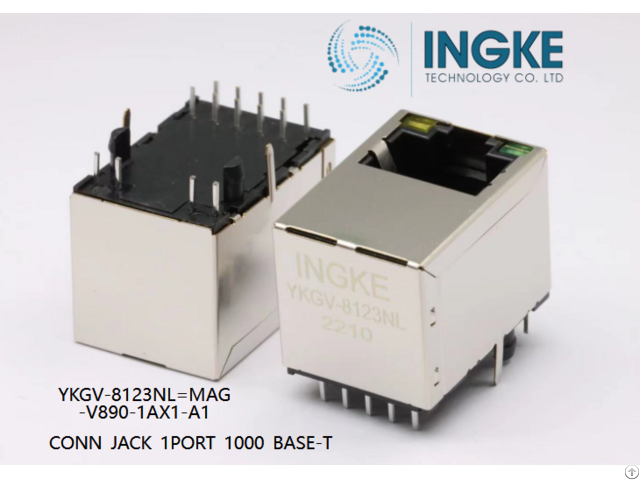

Ingke Ykgv 8123nl Direct Substitute Mag V890 1ax1 A1 Conn Jack 1port 1000 Base T - China

Manufacturer: INGKE Part Number: MAG-V890-1AX1-A1 Chinese Part Number: YKGV-8123NL Part Status: Active Connector Type: RJ45 Number of Ports: 1 Number of Rows: 1 Applications: 10/100/1000 Base-T, AutoMDIX Mounting Type: Through Hole Orientation: Vertical Termination: Solder Height Above Board: 0.909" (23.10mm) Number of Cores per Jack: 8 Shielding: Shielded Features: Board Guide Tab Direction: User Selectable Contact Material: Copper Alloy Contact Finish: Gold Operating Temperature: 0°C ~ 70°C Contact Finish Thickness: 30.0µin (0.76µm) Shield Material: Copper Alloy INGKE also produce substitute such as: 2273099-1 2273098-1 2273096-1 1-2273099-1 2273000-4 1-2273098-1 2273007-1 1-2273007-2 2273009-4 3-2172088-2 2273001-4 2-2273127-4 2273114-4 1-2273127-5 1-2273097-1 2273004-1 1-2273089-4 TAA754A1611-002 1-2273035-2 1-2273035-4 1-2273047-1 3-2273126-4 1-2273004-2 INGKE Technology specializes in producing 100/1000/2.5G/5G/10G Base-T (with POE/POE+, 30w, 60w, 90w, 720mA, 900mA) RJ45 connector & Circular Connectors(M5, M8, M12), since its establishment 1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

INGKE Main products: 1).

100/1000/2.5G/5G/10G Base-T (with POE/POE+, 30w, 60w, 90w, 720mA, 900mA) RJ45 connector cross Pulse, Halo, Belfuse, Wurth, TE, Molex, Amphenol .

2).

Circular Connectors(M5, M8, M12) compatible with TE, NorComp, ODU, HOLIN, LEMO, Amphenol LTW, Lumberg Automation, Phoenix contacts, CONEC, Hirose, Bulgin, Pepperl+Fuchs.

3).

We can offer OEM & ODM services and mould modification according your requirements.

aria.

ingke(at)gmail.

com

Company Contact:

• Posted By: Ingke Technology

• Phone: +8613163767226

• Address: No.2106, Sanhe Building, Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://www.ingketech.com

• Business Description: INGKE Technology specializes in producing 100/1000/2.5G/5G/10G Base-T (with POE/POE+, 30w,60w,90w, 720mA,900mA) RJ45 connector & Circular Connectors (M5,M8,M12), since its establishment 1993, with technology as dependence and the market as direction,we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS,CE,UL and SGS parts.
