Ingke Ykgd 8049nl 100 Percent Cross Si 61001 F Rj45 Ethernet Connectors - China

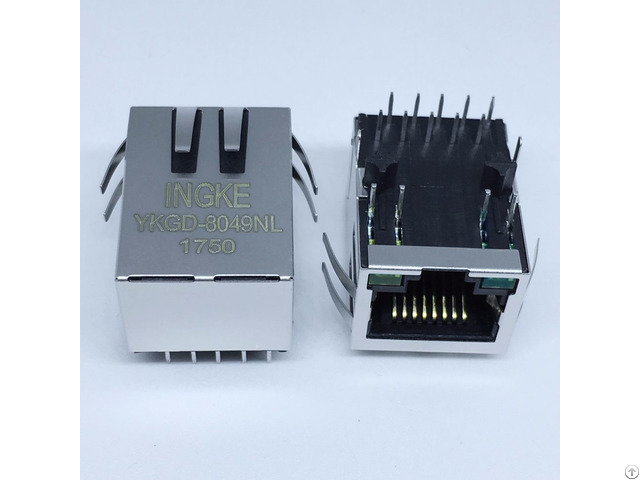

Ingke YKGD-8049NL 100% cross SI-61001-F RJ45 Ethernet Connectors Part Number : SI-61001-F

Made in China: YKGD-8049NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

SI-60118-F SI-61001-F SI-60182-F SI-60136-F SI-60128-F SI-60110-F SI-60159-F SI-60005-F SI-60022-F SI-60158-F SI-60217-F SI-60014-F SI-60015-F SI-60076-F SI-60123-F SI-61031-F 60063-F SI-60135-F SI-60069-F SI-60105-F SI-60091-F SI-60115-F SI-60190-F SI-60060-F SI-60082-F SI-60124-F SI-60006-F SI-60019-F SI-60029-F SI-60065-F SI-60066-F SI-60073-F SI-60074-F SI-60075-F SI-60078-F SI-60080-F SI-60081-F SI-60084-F SI-60085-F SI-60088-F SI-60089-F SI-60090-F SI-60092-F SI-60093-F SI-60095-F SI-60096-F SI-60097-F SI-60098-F SI-60101-F SI-60102-F SI-60103-F SI-60104-F SI-60107-F SI-60112-F SI-60113-F SI-60114-F SI-60116-F SI-60117-F SI-60119-F SI-60120-F SI-60121-F SI-60122-F SI-60125-F SI-60126-F SI-60129-F SI-60132-F SI-60133-F SI-60134-F SI-60138-F SI-60141-F SI-60143-F SI-60144-F SI-60146-F SI-60148-F SI-60150-F SI-60152-F SI-60153-F SI-60160-F SI-60161-F SI-60162-F SI-60163-F SI-60165-F SI-60167-F SI-60168-F SI-60169-F SI-60170-F SI-60172-F
