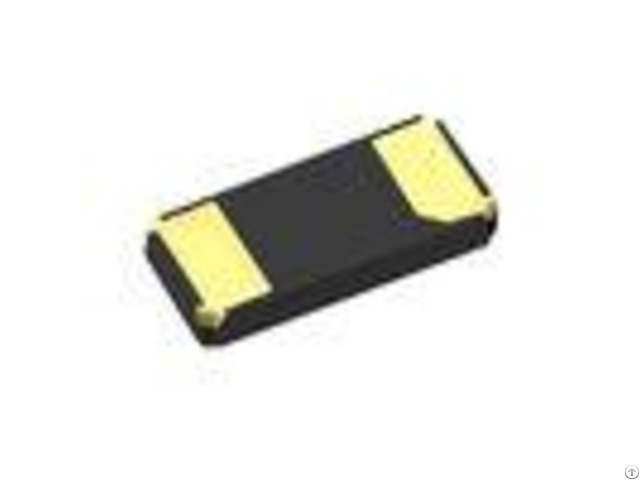

Fc 135 32 768khz Tuning Fork Crystal Oscillato For Digital Camera Zigbee - China

FC - 135 32.768KHZ Tuning Fork Crystal 32.768 khz SMD3215 Crystal Oscillato product application 1, Digital camera 2, Intelligent speakers 3, Zigbee product features Wide Frequency range 4pin Resonator, small size.

Lead-free production and RoHS compliance Standard Environmental Condition: Environmental Temperature: 15~35 Humidity: 45%~85% Atmospheric pressure: 86~106KPa Operating Temperature Range: -20~70 Crystal Frequency & Resistance will be tested under the following conditions, Unless extra requirments: standard temperature(252) after heat balance.

Storage Temperature Range: -40~+85 Mechanical test: The quartz crystal unit shall be subjected to normal atmospheric conditions for 1hr before being tested.

Dropping Test: The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage, after allowing the crystal to fall freely.

From 75 cm of height 3 times on the firmed wood.

Vibration Test: The Units are measured for its frequency and resistance in accordance with Table 1&without mechanical damage afer subjectiong to 2hrs of vibration with 0.75mm amplitude with 10~55Hz frequency sweep 20 times.

Sealing Tightness Find Lead Test: 110-8atmcc/S by Helium mass-mass-spectrometer detector, and vacuum and reach 110-3Pa Resistance to Soldering Heat: The Units are measured for its frequency and resistance in accordance with Table 1 after dipping into molten solder with the temperature of 32010For 3~4 secs and at a depth up to a point 2.0mm from the base root.

Product specification - - - - Type | FC-135 | Frequency Range(KHZ) | 32.768KHZ | Frequency Tolerance(at25) | 20PPm at25+/-2 | Frequency Stability vs.

Temp(FL-T) | -0.0410-6/2 Max | Operating Temperature range | -20~+70 -40~+85 | Storage Temperature range | -45~+80 | Temperature Characteristics | 20PPm | Load Capacitance | 12.5 Pf or Serles | Aging | 3 PPm/year | Insulation Resistance | 500M(DC100V15V) | - - - - Dimension Refluence examination Frequency change: 5ppm Temperature Shock: The Units are measured for its frequency and resistance in accordance with Table 1 .

FAQ Packing 3000pcs/tape.

Samples and technical support can be provided free of charge.
