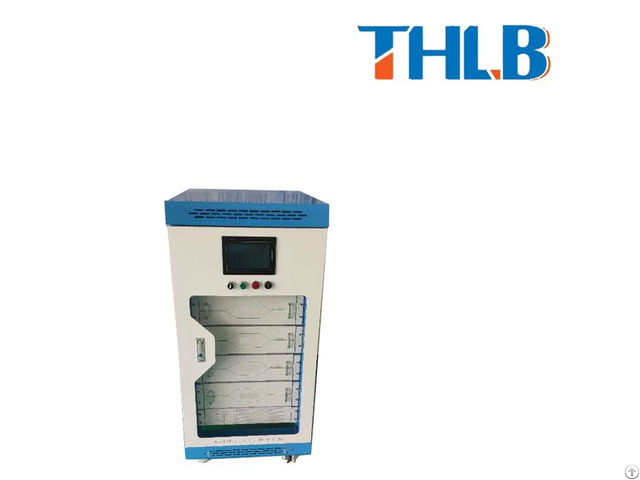

Ess Energy Storage System Home Portable Battery 48v 15kwh - China

Battery Specification 51.2V 15KWh

Max.

Charging Current (A) 190A

Max.

Discharging Current (A) 190A

Charging Curve 3 Stages/Equalization

External Temperature Sensor Optional

Charging Strategy for Li-Ion Battery Self-adaption to BMS

PV String Input Data

Max.

DC Input Power (W) 10400W

PV Input Voltage (V) 370V(100V~500V)

MPPT Range (V) 125V-425V

Start-up Voltage (V) 125V

PV Input Current (A) 18A+18A

No.

of MPPT Trackers 2

No.

of Strings Per MPPT Tracker 2+2

MPPT Efficiency 99.90%

AC Input Data

Wide Input Voltage Range Of The Machine 90~280V

Max AC Input Power (W) 8800W

Input Frequency and Voltage 50/60Hz

AC Output Data

Rated AC Output and UPS Power (W) 8000W

Max AC Output Power (W) 8800W

Peak Power(off grid) 2 times of rated power, 10 S

AC Output Rated Current(A) 33.4A/35A

Max.

AC Current(A) 38.3A/40A

Max Continuous AC Passthrough(A) 50A

Output Frequency and Voltage 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)

Grid Type Split phase , 2/3 phase , Single Phase

Current Harmonic Distortion THD<3%(Linear load<1.5%)

Protection

PV Arc Fault Detection Integrated (Except European Type)

PV Input Lightning Protection Integrated

Anti-islanding Protection Integrated

PV String Input Reverse Polarity Protection Integrated

Insulation Resistor Detection Integrated

Residual Current Monitoring Unit Integrated

Output Over Current Protection Integrated

Output Shorted Protection Integrated

Output Over Voltage Protection Integrated

General Data

Operating Temperature Range (℃ ) -25~60℃, >45℃ Derating

Cooling Fan

Noise (dB) <30

Communication with BMS RS485/CAN

Weight (kg) 300KG

Size (Length*Width*Height mm) 755×665×1600mm

Protection Degree IP32

Warranty 5 years
