Continious Wavelength Fiber Laser Source High Efficiency For Cutting Welding - China
price: check with company for price

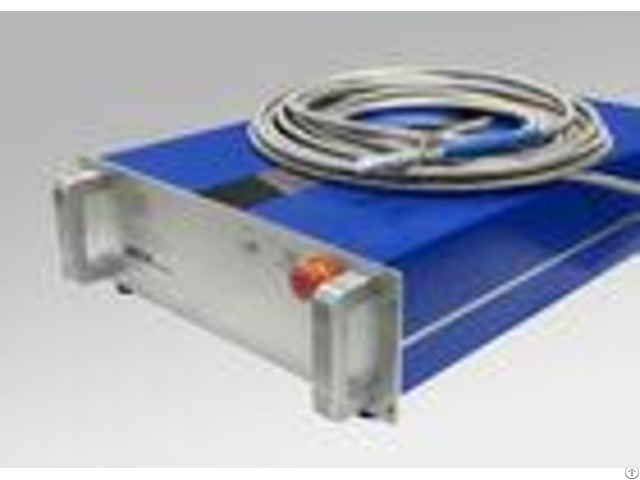

500W -1500W Single Mode Continous Wavelength Fiber Lasers Source for Cutting and Welding MFSC CW Fiber Laser (MFSC500W-1000W) Series products provide a wide range of wavelength from 1060nm to 1100nm.
The lasers are water-cooled and maintenance-free and with a wall plug efficiency of more than 25% and deliver high efficiency, high reliability, and high performance.
Maxphotonics' MFSC CW Fiber Laser (MFSC500W-1000W) Series are Class 4 laser products and are designed and tested with safety.
By following this User Guide and applying sound laser safety practices, it will be a safe and reliable device.
Laser light exhibits unique characteristics that may pose safety hazards.
Therefore, the laser light cant be normally associated with other light sources, and all operators and people near the laser must be aware of these special hazards.
Product features: Saving the combined using cost Long lifetime, high reliability High quality laser output High power, high efficiency, easy to operate Product parameters: - - - - Optical Characteristic Parameters | No.
| Characteristics | Test conditions | Min.
| Nom.
| Max.
| Unit | 1 | Operation mode | CW/Modulated | 2 | Polarization | Random | 3 | Output power 500W | 100% CW | | 500 | | W | Output power 800W | 100% CW | | 800 | | W | Output power 1000W | 100%CW | | 1000 | | W | 4 | Tuning range ofoutput power | | 10 | | 100 | % | 5 | Emission wavelength | 100% CW | 1070 | 1080 | 1090 | nm | 6 | Spectrum width(3dB) | 100% CW | | 3 | 4 | nm | 7 | Short-term power instability | 100% CW>1h | | 1 | 3 | % | 8 | Long-term power instability | 100% CW>24h | | 3 | 5 | % | 9 | Beam quality M2 | 100%CW(20u-QBH) | | | 1.3 | | 100%CW(50u-QBH) | | | 2.8 | | 10 | Laser switching ON time | 10% 90%Output | | 50 | 80 | us | 11 | Laser switching OFF time | 90% 10%Output | | 30 | 50 | us | 12 | Modulation rate | 100% Output | | 20 | 50 | KHz | 13 | Red guide laser power | 100% Output | 150 | | | uw | 14 | Feeding fiber cable length | MFSC-500W | | 12 | | m | MFSC-800W | | 15 | | MFSC-1000W | | 15 | | 15 | Feeding fiber core size | 50(25, 30, 100 optional) | um | 16 | Feeding fiber cable bending radius | | 200 | | | mm | 17 | Output form | Standard QCS/QBH(LOC) | General Characteristic Parameters | No.
| Characteristics | Test conditions | Min.
| Nom.
| Max.
| Unit | 1 | Operating voltage | | 180 | 220 | 240 | VAC | 2 | Nominal power consumption MFSC-500W | 100% Output | | | 2 | kw | Nominal power consumption MFSC-800W | 100% Output | | | 3.2 | Nominal power consumption MFSC-1000W | 100% Output | | | 4 | 3 | Operating ambient temperature | | 10 | | 40 | | 4 | Operating ambient relative humidity | | 10 | | 85 | % | 5 | Cooling method | Water-cooling | 6 | Storage temperature | | -10 | | 60 | | 7 | Dimensions | 750*483*169 | mm | 8 | Weight | | | | 65 | kg | For reference only.
Other beam diameter avai lable by order.
| - - - - Applications: To cut a variety of metal materials, including carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, pickling plate, aluminum zinc plate, cooper, laser welding, 3d printing.
Company Contact:
- Posted By: Rise laser co.,ltd
- Phone: 86-183-12501540
- Address: Science And Technology Industrial Park Building, No.6 Keyuan Road, Nanshan District, Shenzhen City, Shenzhen , Guangdong , China
- Email:
- Website: https://www.shdlaser.com
Published date: February 4, 2018
- Business Description: Rise laser Co., Ltd. is an integrated enterprise which specializes in Laser products, Laser cutting machine, laser engraving machine and Laser marking machine manufacturer and process international sales and domestic sales.
The company was founded in 2010.
