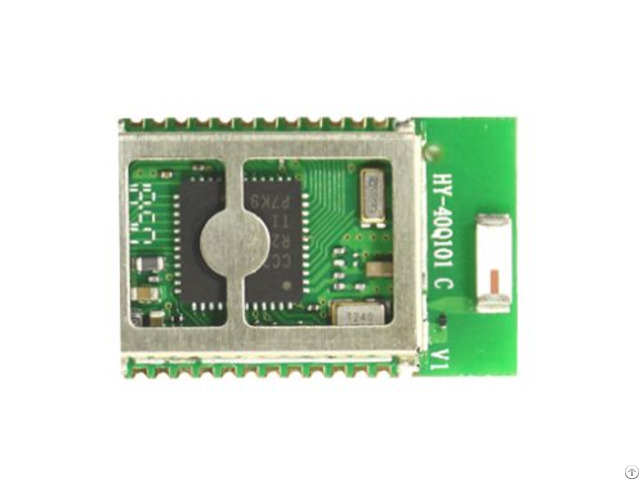

Automotive Bluetooth Modules Hy 40q101cc - China

Product Model：HY-40Q101CC Size: 25.16*15.22*2.6mm(with shield case) Modulation Mode：GFSK Bluetooth v4.2 and v.

5.0 single mode hardware compliant Antenna Type：Ceramic Antennas Qualified for Automotive Applications AEC-Q100 Qualified With the Following Results: Device Temperature Grade 2: –40°C to +105°C Ambient Operating Temperature Range Device HBM ESD Classification Level 2 Device CDM ESD Classification Level C3 Integrated Bluetooth low energy stack GAP, GATT, L2CAP, SMP Bluetooth low energy profiles Compliance Bluetooth BQB BLE 4.2 and 5.0, And Compliance worldwide RF Regulations.

Example: China 3C, Europe CE ETSI RED, America FCC, Canada IC, Japan TELEC, Korea KC…etc.

IC Transmit power : +5 dBm typical IC Receiver sensitivity: -97dBm typical Ultra low current consumption : Standy by mode : 3.6uA ( with Cache RTC, CPU, RAM and partial register retention).

Shutdown mode: .

No clocks running, no retention: 150 nA ( Typical) Programmable ARM Cortex-M3 processor for embedding full applications

Company Contact:

• Posted By: Shengrun Technology

• Phone: +8618617157966

• Address: B Block of Jingu Pioneer Park, Longzhu 4th, TaoYuan Street, Nanshan District, Shenzhen, China, shenzhen , Guangdong , China

• Email:

• Website: https://www.ttcble.com

• Business Description: Shenzhen Shengrun Technology Company( here in after referred to as TTCIOTSDK) is an ODM/OEM company who is centered with technology and concentrate on providing BLE solutions for customers.

  Since establishment, TTCIOTSDK specialized in R&D and innovation of IOT core technology--wireless network .

  TTCIOTSDK is dedicated to provide industrial common key solutions , and already got more than 15 Patents of innovation with software copyrights and patents invention.

  And TTCIOTSDK is certificated by ISO9001 , FCC , CE , RoHS , BQB and many other international certifications, also established a solid and long-term strategic cooperation with TI .

  As TIs important inland third-party partner , TTCIOTSDK hopes to offer inland developer an easy and fast platform to speed up productsdeveloping and launching by localizing .
