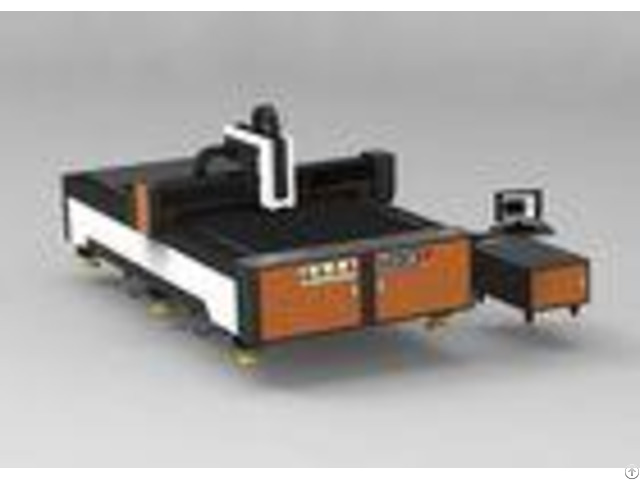

Advertising Metal Fiber Laser Cutting Machine Small Size 1070nm Wavelength - China

500w -1000w Advertising Metal Fiber Laser Cutting Machine Main configuration and technical advantage.

Fiber laser is a new international type of fiber laser, it has a large heat dissipation area, good beam quality, small size, etc., it has obvious advantage compare to the large volume gas lasers and solid lasers, gradually developed into the important candidate in high precision laser processing, laser radar systems, space technology, laser medical and other fields.

Main Features: Excellent beam quality(BPP) Constant BPP in full power range Small laser beam Electro - optical conversion efficiency>30% Free maintanence Compact size, easy installation Lifespan >100, 000 hours Integrated optical-optocoupler, or shutter Main Configuration: - - - - Item | Name | Quantity | Brand | Laser | fiber laser | 1 SET | Maxphotonics | Cutting head | Specialized cutting head | 1 SET | RayTools BT( Switzerland) | | Machine bed | 1 SET | China | | Precise Rack | 1 SET | TAIWAN DINSENSE | Machine body | Precise linear guide rail | 1 SET | TAIWAN HIWIN/ TAIWAN shac | | X, Y axis servo and driver | 1 SET | LETRO | | Reducer system | 1 SET | TAIWAN DINSENSE | | controller | 1 SET | FRANCE Schneider | | Machine bed accessories | 1 SET | CHINA | Digital cutting system | Controller system | 1 SET | Shanghai cypcut /Shanghai Empower | | Chiller | 1 SET | Teyu | | Water recycling equipment | 1 SET | China | - - - - Technical Parameters: - - - - Model | RL3015 | Laser Working Medium | ND: YVO4 | Laser Wavelength | 1070nm | Power | 500W/800W/1000W | Beam Quality | 0.373mrad | Max cutting thickness | Depends on power | Working area | 3000mm1500mm | Positioning Accuracy | 0.05/m | Repeatition Accuracy | 0.05/m | Power Supply | 380V/50Hz | - - - - 1 - Advantage: Fiber laser source compared with traditional laser source and non-laser devices is more Eco-friendly .

With lower electric consumption, fiber laser electro-optical conversion rate is five times of traditional laser.

Has lower cooling requirement.

Lower power fiber laser source only needs air cooling.

Has higher spot quality, single mode source.

Has lower consumption, no need to replace lamp or bar etc consumption material .

Application: Widely used for cutting, welding and drilling on stainless steel, carbon steel, Alloy steel, silicon steel, galvanized steel sheet, nickel-titanium alloy, chromium-nickel alloy, titanium alloy and other metal materials.

Applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, sheet metal processing, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.

A.

Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype.

B.

We offer technician to customer's site for installation and training, customer shall cover visa, ticket, local living cost.

C.

Customer may come to our factory for training.

We will offer training of installation, operation, machine trouble-shooting, and maintenance.

D.

We offer life-long technical service for all our machines.
