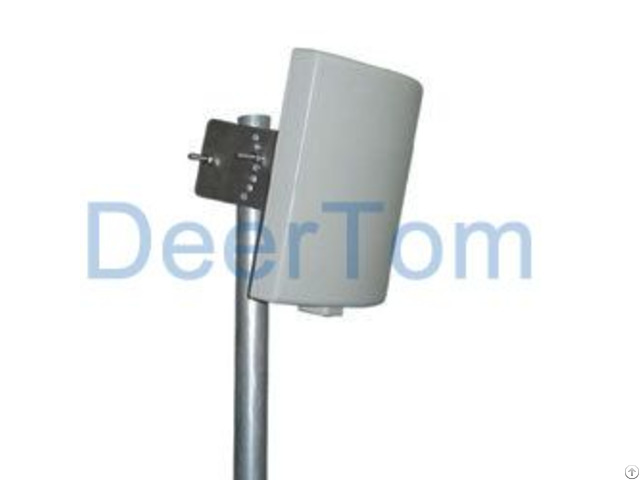

880mhz 902 928mhz Rfid Panel Antenna Celluar Band 9dbi - China

ELECTRICAL

Model DT-PA902-928-8

Frequency Range 902-928MHz

Gain 8dBi

Beamwidth H: 65°, E: 55°

VSWR ≤1.5

F/B Ratio ≥20dB

Polarization RHCP or LHCP or customized

Max Power 50W

Nominal Impedance 50Ω

Lightning Protection DC Ground

MECHANICAL

Connector N Female or customized

Antenna Dimension 250*220*60mm

Weight 1.5kg

Radome Material Waterproof ABS

Rated Wind Velocity 60m/s
