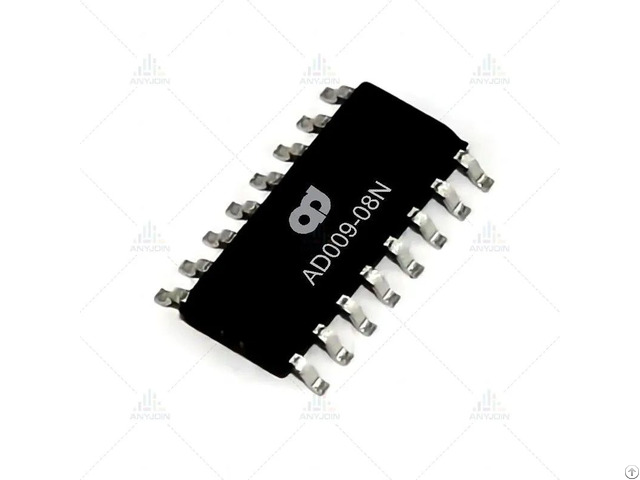

TV Remote Controller IC Chip AD009-08N | 4-bit RISC OTP Microcontroller SOP16

1 - MCU Operating voltage: 1.8V to 3.6V

2 - Flexible and cost-effective solution for remote control

3 - Built-in one IR LED driver pin

4 - Low voltage reset ( LVR=1.5V )

Package SOP16

AD009-08N is a dedicated TV Remote Controller IC Chip designed for infrared remote control applications.

Built on a 4-bit RISC architecture, this OTP microcontroller provides a compact, stable and cost-effective solution for consumer electronics remote control systems.

With integrated OTP program memory, SRAM, GPIOs and a built-in IR LED driver, the AD009-08N simplifies circuit design and reduces external component count, making it ideal for high-volume production of remote control devices.

Key Features

- 4-bit RISC microcontroller architecture

- Embedded 640 × 12-bit OTP program memory

- 32 × 4-bit SRAM data memory

- 13 configurable input/output pins

- Built-in T-type keyboard scanning function

- Integrated IR LED driver pin

- Low operating voltage: 1.8V – 3.6V

- Low Voltage Reset (LVR = 1.5V)

- SOP16 package for compact PCB design

Applications

- TV remote control systems

- Air conditioner remote controllers

- Fan and small home appliance controllers

- Infrared wireless control devices

- Consumer electronics control modules

Advantages

AD009-08N offers a highly integrated and cost-effective solution for remote control system design.

With built-in IR driving capability and optimized low-power architecture, it reduces external component count, simplifies PCB design, and lowers overall system cost, making it ideal for mass production of consumer remote control products.
