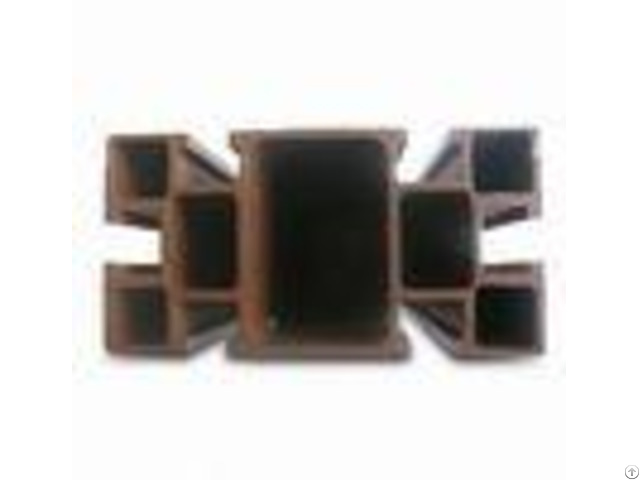

Light Dark Bronze Aluminum T6 6061 Profiles For Double Side Hung Window Profile - China

Light / Dark Bronze Aluminum T6 6061 Profiles For Double / Side Hung Window Profile 1 - Temper: T4, T5, T6, T66 2 - Material: Aluminum 3 - Suface Treatment: Mill Finished, Anodized, Electrophoretic coated, Powder spray coated, Fluorocarbon powder spray coated /PVDF Paint, Drawbench, Steel polished, Wood grain coated /Wooden transfer .

4 - Deep process: Milling, Drilling, Bending, Cutting.

Description: Technical requirements 1) Standard: GB/75237-2004, Q/320281/PDWD-2008 2) Certification: ISO9001 3) OEM service offered 4) Material: Alloy 6063, 6061 or according to customer s choice Temper: T3, T4, T5, T6 5) Fabrication: 1 - Milling; 2 - Drilling; 3 - Bending; 4 - Cutting.

6) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.

7) MOQ: 1 ton.

Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

8) FOB Port: Shanghai Port The surface treatment : 1) Mill Finished 2) Anodized: Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium.

Usually the thickness of the film is 10 um.

3) Electrophoretic coated: Silver, champagne, bronze, black, light bronze, dark bronze.

4) Powder spray coated: Normal color, special color.

Thickness: 60 to 80 um.

5) Fluorocarbon powder spray coated /PVDF Paint: Normal color, special color.

6) Drawbench 7) Steel polished 8) Wood grain coated /Wooden transfer : Imported paper, domestic paper.

Applications: Used in casement doors and windows for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel, etc.

Specifications: 1 - Primary Technical Data 1)Chemical composition - - - - Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al | 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest | 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest | 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest | 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest | - - - - 2)Mechanical property - - - - Alloy | Temper | Tensile strength | Yield strength | Elongation | 6063 | T5 | 160Mpa | 110Mpa | 8% | T6 | 205Mpa | 180Mpa | 8% | 6061 | T6 | 265Mpa | 245Mpa | 8% | - - - - 2 - Specifications : Competitive Advantage: 1)Engineering design and support.

2)Aluminium profiles deeply processing: cutting, punching, drilling, milling, and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.
