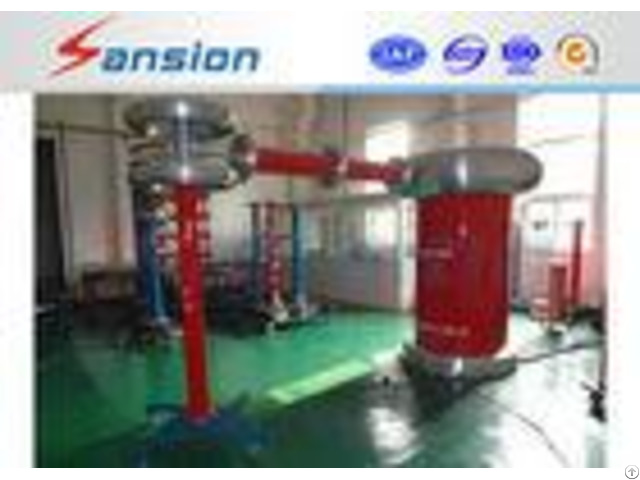

Full Function High Voltage Test Set Output Stability Suitable For Wild Field Testing - China

Ydq PDF Partial Discharge Gas Testing Transformer AC Hipot Test Equipment General information The Series can wildly used to test insulation ability of various HV equipment, especially for which located in the wide field and plateau mountainous area.

Sansion gas transformers are virtually maintenance free and are manufactured in accordance with industry and international standards including ISO 9001 - Features 1 - Small size, light weight.

(40%-65% lighter than same level oil transformer).

2 - Non-flammable, non-polluting transformer and maintenance free.

3 - Unaffected by climate, long service life.

4 - Insulation strength is higher than oil type transformer, no corona.

5 - The voltage degree can reach to 300kV per unit.

6 - Allowed continuous working 0.5 hours @ rated voltage, rated capacity, continuous working @ 2/3 rated current.

7 - Over voltage protection.

Specifications - - - - Model | Capacity KVA | LV Side | HV Side | Measuring Variation | 60mins Temperature RisingC | Impedance Voltage% | No Load Current % | Weight kg | Oversize LWH mmmmmm | Voltage V | Current A | Voltage KV | Current mA | 1.5/50 | 1.5 | 200 | 7.5 | 50 | 30 | 500 | 50 | 10 | <4 | 30 | 200275640 | 3/50 | 3 | 200 | 15 | 50 | 60 | 500 | 50 | 10 | <4 | 35 | 240300690 | 6/50 | 6 | 200 | 30 | 50 | 120 | 500 | 50 | 10 | <4 | 40 | 250355710 | 10/50 | 10 | 200 | 50 | 50 | 200 | 500 | 50 | 10 | <4 | 60 | 260375750 | 15/50 | 15 | 400 | 37.5 | 50 | 300 | 500 | 50 | 8 | <4 | 70 | 270420800 | 20/50 | 20 | 400 | 50 | 50 | 400 | 500 | 50 | 8 | <4 | 85 | 285440820 | 30/50 | 30 | 400 | 75 | 50 | 600 | 500 | 50 | 8 | <4 | 100 | 295386840 | 50/50 | 50 | 400 | 125 | 50 | 1000 | 500 | 50 | 8 | <4 | 120 | 320416910 | 10/100 | 10 | 200 | 50 | 100 | 100 | 1000 | 50 | 10 | <4 | 65 | 3504751300 | 15/100 | 15 | 400 | 37.5 | 100 | 150 | 1000 | 50 | 8 | <4 | 85 | 5103901320 | 20/100 | 20 | 400 | 50 | 100 | 200 | 1000 | 50 | 8 | <4 | 100 | 5404001340 | 30/100 | 30 | 400 | 70 | 100 | 300 | 1000 | 50 | 8 | <4 | 110 | 5604101360 | 50/100 | 50 | 400 | 125 | 100 | 500 | 1000 | 50 | 8 | <4 | 125 | 6004601410 | 10/150 | 10 | 200 | 50 | 100 | 66.7 | 1500 | 50 | 10 | <4 | 90 | 2653801750 | 15/150 | 15 | 400 | 37.5 | 150 | 100 | 1500 | 50 | 8 | <4 | 100 | 5103901800 | 20/150 | 30 | 400 | 50 | 150 | 133.3 | 1500 | 50 | 8 | <4 | 110 | 5404151800 | 30/150 | 30 | 400 | 75 | 150 | 200 | 1500 | 50 | 8 | <4 | 125 | 5604301800 | 50/150 | 50 | 400 | 125 | 150 | 333.3 | 1500 | 50 | 8 | <4 | 140 | 6404901850 | - - - - More information, please kindly contact withus, we can customize the suitable test set according your requirements and give you the best quotation.

Thank you!

Company Contact:

• Posted By: Sansion Power Electric Co., Ltd.

• Phone: 86-27-83385466

• Address: Building 8, YuanYuanXin Industrial Park, DongXiHu District, Wuhan, China, Wuhan , Hubei , China

• Email:

• Website: https://www.powertestingsystem.com

• Business Description: From the date of order placing, we usually need 3-7 working days to manufacturing.

  Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean.

  Sansion Power also can provide OEM service according your customized.
