Energy Saving Battery Pack Tester Programmable Cycler 50v100a For Current Amp Voltage Test - China

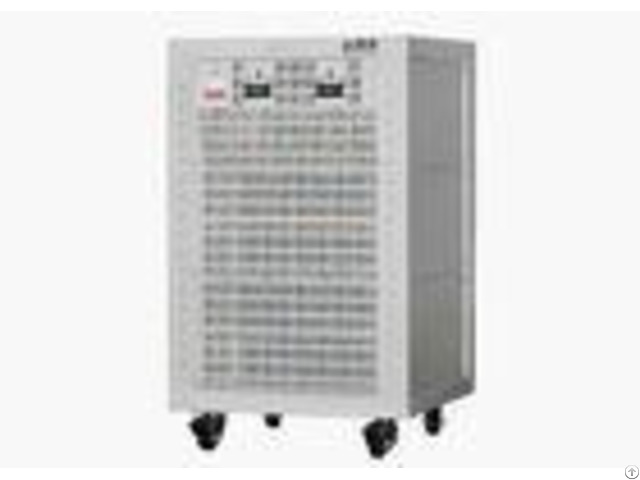

Neware Battery Module Testing System Programmable Cycler 50V100A Up to 100A, up to 50V, 1 Channels.

Rate Test, DCIR, Pulse Test.

Cycle Life Test.

Discharge Min Voltage can be customerized to 0V.

Temperature measurement auxiliary can be intergrated.

CT-4001-50V100A-NAmodel Current and Voltage Output: - - - - Output Voltage | CV Output Range | 0.25V~50V | Min Discharge Voltage | 3V | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Output Current | Output Range | 0.5A~100A | Accuracy | 0.1% of FS | CV Cut-off Current | 0.2A | Stability | 0.1% of FS | - - - - Charge and Discharge Mode: - - - - Charge | Charge Mode | CC, CV, CCCV, CP | End Condition | Voltage, Current, t, Capacity, -V | Discharge | Discharge Mode | CC, CP, CR | End Condition | Voltage, Current, t, Capacity, -V | Pulse Mode | Charge Mode | CC, CP | Discharge Mode | CC, CP | Min Pulse Width | 500ms | Max Pulse Number | 32 pulse in a single step | Charge And Discharge Switch | Continuous switched for charging and discharging in a single pulse step | End Condition | Voltage, Relative time | - - - - Run the channels: Select the channels to run, right click and select the Single Start, and then you can set the work steps.

View Data During the test or at the end of the test, choose the channel menu - Channel Data, and you can export the data to nda file, then the customerized excel report can be created here.

Worksteps can besetted inthe running NEWARE BTS CLIENT application on an existing desktop PC, the system supports current, voltage, power and resistive based loads, with a minimum pulsing width of500 msec.

OurBTS-4000 seriessystem will give you ultra fast switching capabilities between charging and discharging modes, guaranteeing you thestability andaccuracy you need.

By adding more test channels to the master controller and more test systems to the same network, the number of channels can easily be expanded.

Primary Applications: # # Current & Voltage # Pulse Test # DCIR Testing(direct current internal resistance) # Capacity and Specific Capacity # Cycle Life # Formation & Grading # Over-charge, Over-discharge Highlights: # # Extremely precise and highly dynamic measuring equipment # HPPC, Capacity, Cycle Life, Formation & Grading, Over-charge, Over-discharge # Market-proven Testing System # <=20ms Response Time to Meet Rapidly Changing Power Requirements # 0.1% Full-scale Accuracy for Current & Voltage # 10Hz Data Acquisition Frequency, 100Hz Optional # 500ms Minimum Pulse Width # More Than 1 Million Records Can Be Processed # 'And', 'or', '', '' and '=' supported; # Condition switches works with step accumulated time; # Up to 5 condition switches for each step; # Go to break supported.

# Fast measure speed, wide measure range.

# For testing all kinds of battery including Li-ion battery, NiMH, NiCd, battery pack, and etc.

# Our equipment is designed for both laboratory and production scale applications, including formation and ranking.
