    • Av70501 Series Coaxial Loads Broadband Frequency Range Dc To 67ghz - China

    price: check with company for price

    Av70501 Series Coaxial Loads Broadband Frequency Range Dc To 67ghz

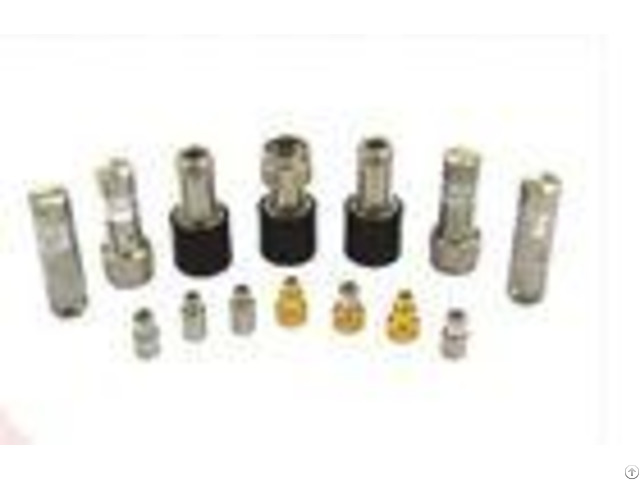

    Products Photos Catalog Av70501 Coaxial Loads Photos Catalog

    AV70501 series coaxial loads - - - - Features: Broadband frequency range: DC to 67GHz Various connector types: 7mm, type N, 3.5mm, 2.92mm, 2.4mm and 1.85mm.

    Low VSWR General Description: The broadband fixed coaxial loads are with the characteristics of low VSWR and small size.

    Connector type includes 7mm, type N, 3.5mm, 2.4mm and 1.85mm.

    They cover a broadband frequency range, with high limit up to 67GHz.

    Specifications: (temperatu re= 25) - - - - Model | Resistance () | Frequency (GHz) | VSWR(Max) | Max input power (W) | Connector type | AV70501 | 50 | DC-18 | 1.055 | 1 | N(f) | AV70502 | 50 | DC-18 | 1.055 | 1 | N(m) | AV70503 | 50 | DC-2 | 1.02 | 1 | N(f) | AV70504 | 50 | DC-2 | 1.02 | 1 | N(m) | AV70505 | 50 | DC-26.5 | 1.055 | 1 | 3.5mm(f) | AV70506 | 50 | DC-26.5 | 1.055 | 1 | 3.5mm(m) | AV70507 | 50 | DC-18 | 1.04 | 1 | 7mm | AV70508 | 50 | DC-40 | 1.12 | 0.5 | 2.4mm(f) | AV70509 | 50 | DC-40 | 1.12 | 0.5 | 2.4mm(m) | AV70510 | 75 | DC-3 | 1.03 | 1 | N(f) | AV70511 | 75 | DC-3 | 1.03 | 1 | N(m) | AV80501 | 50 | DC-67 | 1.15 | 0.5 | 1.85mm(m) | AV80502 | 50 | DC-67 | 1.15 | 0.5 | 1.85mm(f) | AV80504 | 50 | DC-40 | 1.17 | 0.5 | 2.92mm(m) | AV80505 | 50 | DC-40 | 1.17 | 0.5 | 2.92mm(f) | - - - - TypicalPerformance: (Tempe rature= 25) AV70501/AV70502 type N coaxial load AV70505/AV70506 3.5mm coaxial load AV70508/AV70509 2.4mm coaxial load AV80504/AV80505 2.92mm coaxial load AV80501/AV80502 1.85mm coaxial load Absolute Maximum Ratings: - - - - | Min | Max | Input power | -- | 0.5W/1W | Operating temperature | +20 | +26 | Storage temperature | -20 | +70 | - - - - Outline Drawing: Ordering Information: - - - - Model | Name | AV70501 | Type N Female Load | AV70502 | Type N Male Load | AV70503 | Type N Female Load | AV70504 | Type N Male Load | AV70505 | 3.5mm Female Load | AV70506 | 3.5mm Male Load | AV70507 | 7mm Load | AV70508 | 2.4mm Female Load | AV70509 | 2.4mm Male Load | AV70510 | Type N 75Female Load | AV70511 | Type N 75Male Load | AV80501 | 1.85mm Male Load | AV80502 | 1.85mm Female Load | AV80504 | 2.92mm Male Load | AV80505 | 2.92mm Female Load | - - - - Notes: 1 - ELECTROSTATIC SENSITIVE DEVICE OBSERVES HANDLING PRECAUTIONS.

    2 - PRODUCT SPECIFICATIONS AND DESCRIPTIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT NOTICE .

    | - - - -


    Company Contact:


    • Phone: 86-27-86659761

    • Address: ROOM 1507 TOWER A, OPTICS VALLEY INT’L PLAZA NO.889 LUOYU ROAD EAST LAKE HIGH-TECH DEVELOPMENT ZONE,, Wuhuan , Hubei , China

    • Email: Email


    Published date: February 8, 2018

    • Business Description: More than a decade, the company in the process of security and protection products and related products exports, has accumulated rich experience, has won the good reputation.

      We will wholeheartedly provide you with quality products and efficient service.
