Vacuum Plasma Cleaning Equipment - China
price: 1.00 Dollar US$

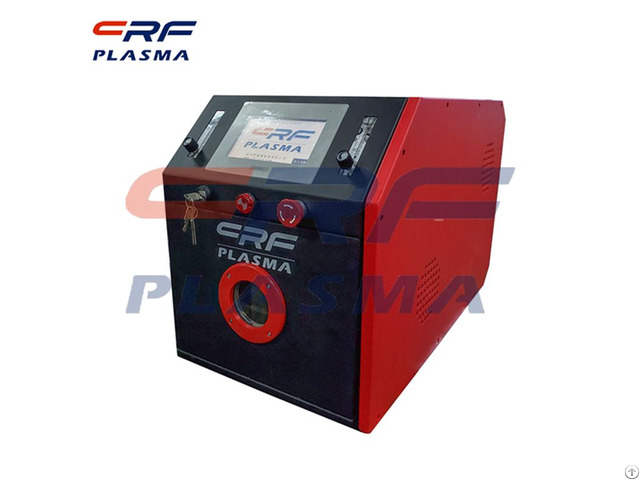

Vacuum plasma processing system CRF-VPO-2L-S Name Vacuum plasma processing system Model CRF-VPO-2L-S Control system PLC+touch screen Power supply 380V/AC, 50/60Hz, 3kw RF Power 1000W/40KHz Capacity (Volume) 10L(Option) Number of layers (Electrode of plies) 2(Option) Cavity specifications (Area) 220(W)*230(D)*230(H) Gas channel (Gas) Two working gas options: Ar, N2, CF4, O2 Features
Large processing space, increase processing capacity, adopt PLC+touch screen control system, accurately control equipment operation;
The capacity and number of layers of the equipment cavity can be customized according to customer requirements to meet customer needs; maintenance and repair costs are low, which is convenient for customer cost control;
High precision, fast response, good controllability and compatibility, perfect functions and professional technical support.
Scope of application
Vacuum plasma cleaning machine is suitable for printed circuit board industry, semiconductor IC field, silica gel, plastic, polymer field, automotive electronics industry, aviation Empty industry and so on.
Printed circuit board industry: high-frequency board surface activation, multi-layer board surface cleaning, de-drilling, soft board, soft-hard combined board surface cleaning, Desmearing, activation before soft board reinforcement.
Semiconductor IC field: COB, COG, COF, ACF process, used for cleaning before bonding and welding; silicon
Surface roughening, etching and activation of silica gel, plastic and polymer in the field of glue, plastic and polymer.
Company Contact:
- Phone: 13632675935
- Address: Mabao Industrial Zone, Huangpu, Baoan District, shenzhen , guangdong , China
- Email:
- Website: http://en.sfi-crf.com
Published date: August 20, 2020
- Business Description: Sing Fung Interlligent Manufacturing(CRF plasma) main plasma cleaning machine, vacuum plasma cleaning machine, plasma surface treatment equipment and other technical equipment.
The machine can support custom design.
