T8100 Controller chassis

Description

The Trusted controller chassis is designed to accommodate a maximum of eight single-width Trusted interfaces and up to two triple-width Trusted TMR processors.

The chassis consists of a backplane, power connection terminals, and the inter-module bus connectors.

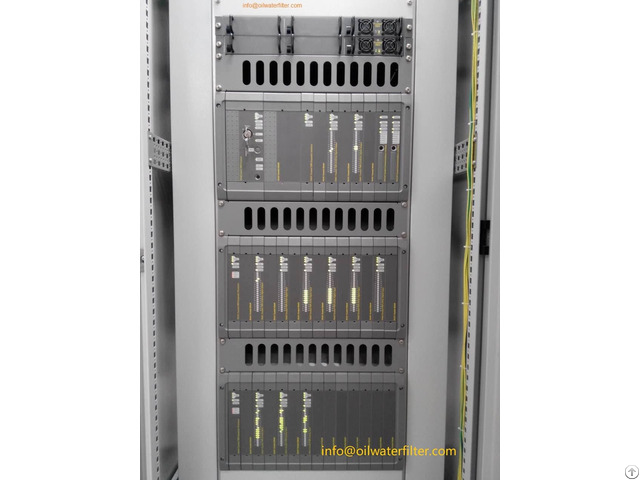

The chassis is 6U (10.5ins) high and is either front mounted in a 483mm (19- inch) fixed frame or swing frame, or can be panel (rear) mounted in a suitable electrical enclosure.

The two slot positions on the left (as viewed from the front) are for installing the Trusted TMR processors.

The eight remaining slots are for installing the Trusted interfaces.

Each module plugs into the chassis backplane, connecting to the triplicated inter-module bus.

Double and single connector options are available.

The backplane is part of the Trusted controller chassis and provides electrical interconnection and other services for the modules.

A triplicated 4-position DIP switch is provided for user configuration of the system identification.

Power connection to the Trusted controller chassis is provided via a 4-pole connector on the chassis backplane.

The Trusted controller chassis is designed for a nominal dual +24V dc power supply.

Features

2 x 90mm Trusted TMR processor slots.

8 x 30mm Trusted interface module slots.

No user-serviceable parts.

Fast assembly.

Minimum tooling/parts.

Twelve high integrity I/O modules supported per Trusted expander chassis.

Dual redundant power supplies from the Trusted high integrity power supply unit.

Module slot keying.

Triplicated inter-module bus connections.

Front or rear (panel) mounting on 483mm (19-inch) dimension.

32, 48, 64 and 96-way DIN41612 I/O port connector capability.
