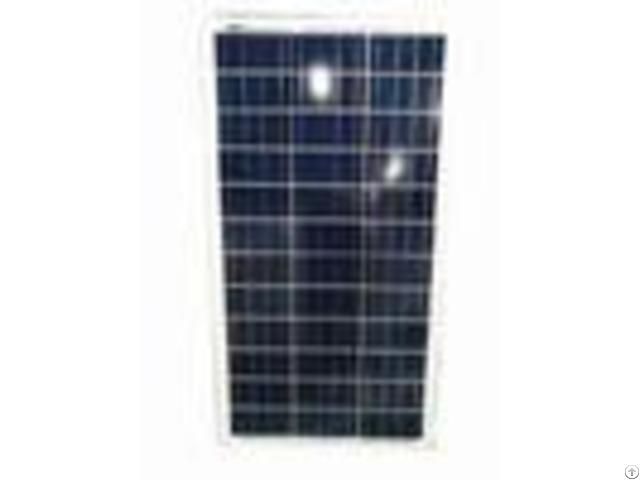

Residential 130w Polycrystalline Solar Panel 18v High Transmittance Glass - China
price: check with company for price
We have different model, size and power 3W-320W poly and Monoand any thing customized.
Product features:
1 - High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT.
2 - Anodized quality aluminum frame, beautiful appearance.
3 - Wind resistance, pressure resistance, high conversion efficiency.
Description: 130W Polycrystalline solar panel Specifications: - - - -
Solar Panel Parameters | KL-130W-P | Optimized working voltage | 18V | Optimized working current | 7.222A | Open circuit voltage | 21.6V | Short circuit current | 6.019A | Nominal power | 130W | Operating temperature | -40 to+85 | Maximum system voltage | 1000VDC(IEC)/600VDC(UL) | Series fuse rated value | 20A | Power tolerance | 3% | Cell specification | 15693mm | Arrangement quantity | 36(312) | Solar panel dimension | 120054035mm | Weight | 8.0kg | Glass specification | 3.2mm(0.13inch) tempered glass | Frame | Anodised aluminium alloy | Rated operating temperature | 452 | Pmax temperature parameter | -(0.480.05)%/ | Voc temperature coefficient: | -(0.340.1)%/ | Isc temperature coefficient | 0.040.01%/ | Notic: Data under standard testing condition (STC): 1000W/, AM1.5, 25 - | - - - - Applications:
1 - Living house and home building 2 - Office building, factory and warehouse
3 - Shopping mall, vanue, stadium and so on
4 - Power station, field operation some huge engineer construction Glass > Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional) Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life EVA anti-aging EVA, excellent weathering resistance TPT Product field:
1 - Gird-connected power generation system 2 - Off-grid power generation system 3 - Building-integrated power generation facilities
Company Contact:
- Posted By: Ningbo Kelan Solar Electric Co., Ltd.
- Phone: 86-574-86768338
- Address: 9, xinyi road, xienan industrial zone, daxie development zone, Beilun, Ningbo,China, Ningbo , Zhejiang , China
- Email:
Published date: February 2, 2018
- Business Description: Kelan Solar, established in 2008, is a professional green power producer of solar panel and solar module in Ningbo, China.
Our main products are 2 -350 watt mono crystalline and poly crystalline silicon solar panels in standard or special sizes and shapes.
