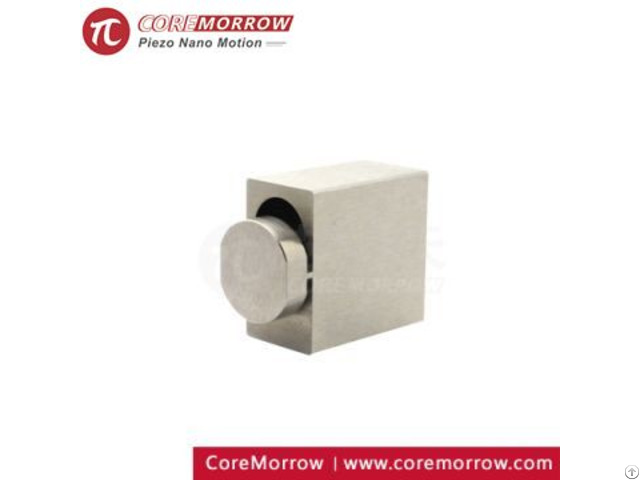

P22high Speed Miniature Piezo Tilt Mirror Fast Steering - China
price: contact company for price
P22 miniature tilt platforms(θx) Characteristics:
• Sub-mrad resolution
• Sub-millisecond response
• Up to 3.6 mrad optical beam deflection
• Closed-loop versions for better linearity
• Zero friction flexure guiding system
Technical Data:
• Models: P22 - U3S, P22 - U3K
• Active axes: θx
• Integrated sensor: SGS
• Tilt angle(0~120V): 2.8 mrad ±20%
• Max tilt angle(-20~+150V): 4 mrad±20%
• Tilt resolution: 0.3/0.1 urad Typ.
• Linearity θx: 0.15 %F.S. Typ.
• Repeatability θx: 0.1 %F.S. Typ.
• Unloaded response frequency(θx): 3 kHz ±20%
• Electrical capacitance: 1.8 uF ±20%
• Material: N-S
• Weight: 80 g ±5%
Cable length: 1.5 m ±10mm
Company Contact:
- Posted By: CoreMorrow Ltd.
- Phone: 0451-86268790
- Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin，China, Harbin , China , China
- Email:
- Website: http://www.coremorrow.com/en/
Published date: February 18, 2021
- Business Description: CoreMorrow Ltd. focuses on research，development, production and sales of nanoscale precision positioning products, mainly in the service of high-end precision equipment manufacturers.
After nearly 20 years of rapid development, our market has covered all well-known colleges and universities, research institutes, and high precision equipment manufacturers, and exported to Europe, America, Canada, Singapore, Japan, Korea and other countries.
We have established partnerships with a number of high-tech enterprises, state key laboratory, has become Chinese most professional precision positioning products manufacturer.
