P F Inductive Sensor Ncb10 30gm40 N0 - Germany

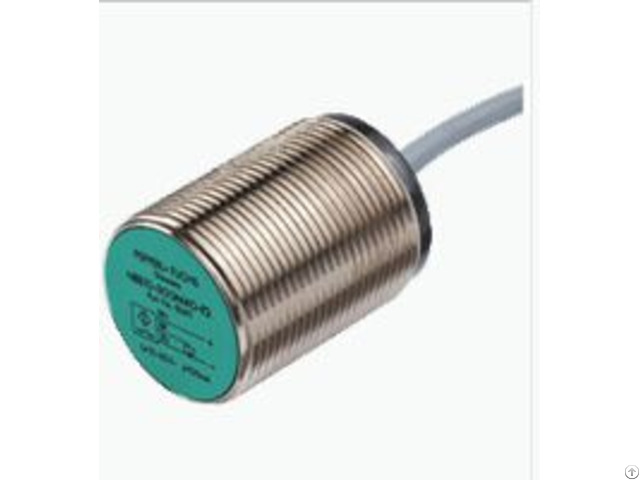

Inductive sensor NCB10-30GM40-N0

10 mm flush

Usable up to SIL 2 acc.

to IEC 61508

Stainless steel housing

General specifications

Switching element function NAMUR, NC

Rated operating distance 10 mm

Installation flush

Output polarity NAMUR

Assured operating distance 0 .

8.1 mm

Actual operating distance 9 .

11 mm typ.

Reduction factor rAl 0.35

Reduction factor rCu 0.3

Reduction factor r304 0.75

Nominal ratings

Nominal voltage 8 V

Switching frequency 0 .

200 Hz

Hysteresis 1 .

15 typ.

5 %

Reverse polarity protection reverse polarity protected

Short-circuit protection yes

Current consumption

Measuring plate not detected min.

2.2 mA

Measuring plate detected ≤ 1 mA

Switching state indicator all direction LED, yellow

Functional safety related parameters

MTTFd 1870 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Compliance with standards and directives

Standard conformity

NAMUR EN 60947-5-6: 2000

IEC 60947-5-6: 1999

Electromagnetic compatibility NE 21: 2007
