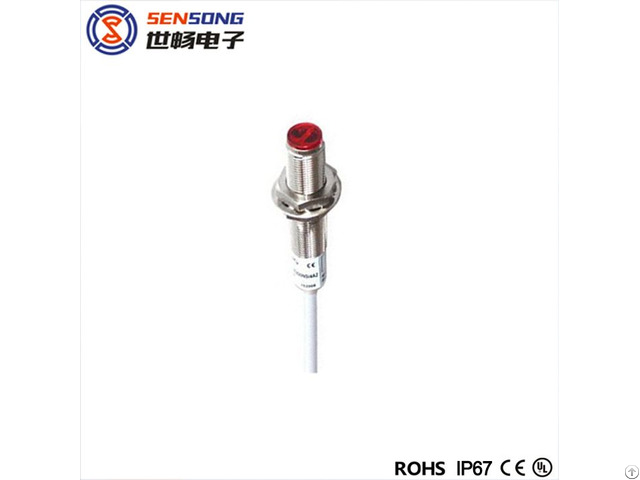

M12 Diffuse Photoelectric Sensor

M12 Diffuse Optical Sensor Feature:

1)High Stability

2)IP67 Protection, Dust-Proof, Water-Proof and Oil-Proof

3)Multi-type Sensors, Match Personalized Needs

4)Strict Inspection, High Quality Sensing Mode: Diffuse Mode

Diameter: M12

Switching Distance: 200mm

Nominal Voltage: 10-30VDC

Residual Ripple: ≤ 10%

Tolerance: ± 10% Sn

Hysteresis: <10%

Emission: Infrared(880nm)

Output Function: NPN or PNP

Output: Light on or Dark on

Max.

Output Current: 200mA

No Load Current: 30mA or less

Voltage Drop(Sensor On): ≤ 2.5V

Sensitivity Adjustment: Not adjustable

Response Time: 1ms

Short Circuit Protection: Yes

Electronic Protection: Yes

Temperature: -25-+55° C

Ambient Humidity: 35 to 85% RH

Light Immunity: ≤ 10.000Lux

Protection Degree: IP67

Housing Materical: ABS Plastic or Nickel plated brass

Sensing Object: 10X10cm white paper Brass Housing-NPN Light on + Dark on:

PA1B-D120200IN-C4W2(2m cable) /

PA1B-D120200IN-CEW4(4 Pin M12 conector)

Brass Housing-PNP Light on + Dark on:

PA1B-D120200IP-C4W2(2m cable) /

PA1B-D120200IP-CEW4(4 Pin M12 conector) Plastic Housing-NPN Light on + Dark on:

PA1P-D120200IN-C4W2(2m cable) /

PA1P-D120200IN-CEW4(4 Pin M12 conector)

Plastic Housing-PNP Light on + Dark on:

PA1P-D120200IP-C4W2(2m cable) /

PA1P-D120200IP-CEW4(4 Pin M12 conector) Application:

1) SMT Equipment;

2) Packing Machines;

3) Robots

4) Automation Production Line Other Information

All our sensors are designed & built strictly according to the international norms and conformity with RoHS direction, have achieved CE &UL certification.

And technically the leading alternative to direct products of the same type from the European, American, Japanese and other world-famous brands.
