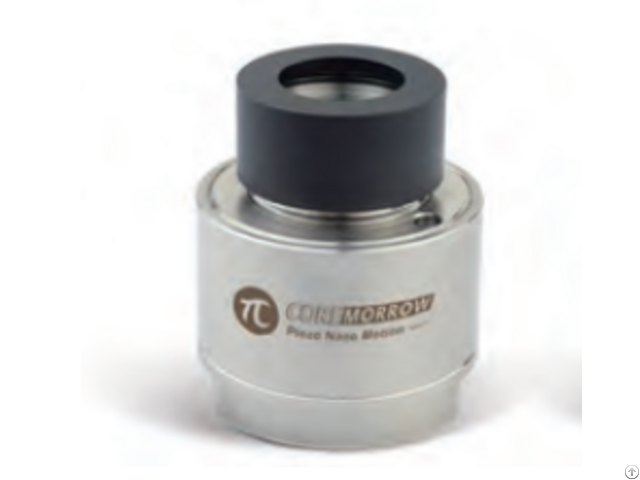

Low Voltage Ring Piezoelectric Actuator With Aperture 9mm 14mm - China
price: contact company for price
Low voltage ring piezo actuator is ring piezo stack actuator with mechanical preload.
There is an aperture through it, which can be used in optical positioning systems.
Characteristics • Stroke to 47μm • High precision of closed loop positioning • Blocking force to 5300N • Aperture: Ø9mm/Ø14mm Installation
There are screw base at the bottom for fixing, and screw head at the top connected to load.
There is a fixing cap for installing of mirror.
Technical Data
eg：HPSt150/14-10/12 VS22
Stroke [μm]±10%* : 11
Stiffness [N/μm]±20%: 250
Push/pull force [N]: 3000/250
El.
capacitance [μF]±20%: 2.6
Resonant frequency [kHz]±20%: 30
Length L [mm]±0.3: 31
Company Contact:
- Posted By: CoreMorrow Ltd.
- Phone: 0451-86268790
- Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin，China, Harbin , China , China
- Email:
- Website: http://www.coremorrow.com/en/
Published date: January 10, 2024
- Business Description: CoreMorrow Ltd. focuses on research，development, production and sales of nanoscale precision positioning products, mainly in the service of high-end precision equipment manufacturers.
After nearly 20 years of rapid development, our market has covered all well-known colleges and universities, research institutes, and high precision equipment manufacturers, and exported to Europe, America, Canada, Singapore, Japan, Korea and other countries.
We have established partnerships with a number of high-tech enterprises, state key laboratory, has become Chinese most professional precision positioning products manufacturer.
