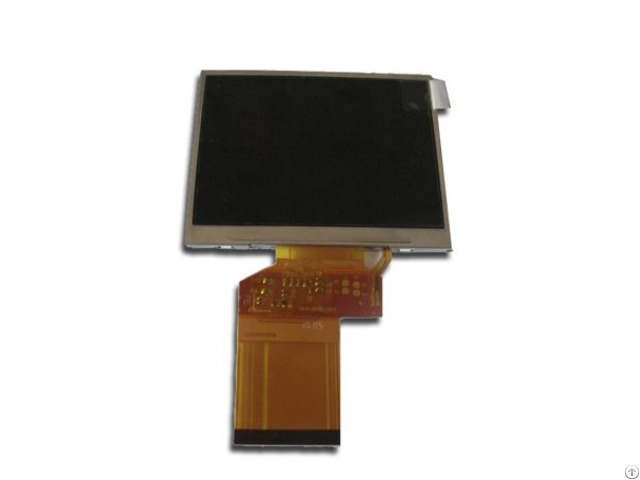

Lcd Module 320x240 Innolux Lq035nc111 - China

Productor ChiHsin

MODEL LQ035NC111

Size 3.5"

Resolution 320×240

Resolution Name QVGA

Display scale 4: 3

Pixel Arrangement RGB

Pixel Pitch 0.073×0.219 mm

Panel Composition LCD

Technology a-Si TFT-LCD

Panel Features Write LED, Display mode TN, NW, transmissive

Luminance 250 nits

Contrast Ratio 400: 1

Color 16.7M

Color Saturation 60%NTSC(CIE1931)

Response 10/15 (Tr/Td) ms

Viewing Angle 50/55/60/60

The Best View 6 o'clock

White Field Chroma X: 0.310; Y: 0.330

White Field Dynamic X: 0.310;Y: 0.330

Reverse Scan No

The kind of Singnal Parallel

Interface Digital

Singnal Interface Definition Parallel/SerialRGB

Drive-screen voltage 3.3V

Input Current 8.6mA (ICC)

Brand of Singnal Interface FPC

Pitch of Singnal Interface 1 mm

Quantity of Singnal Interface 1 pcs

Pin of Singnal Interface 54 pins

Operation Temperature -20 °C ~ 70 °C

Storage Temperature -30°C ~ 80°C

Active Area 70.08×52.56 mm

Display Area 73.03×55.50

Outline 76.90× 63.90×3.30 mm

Touch Panel no
