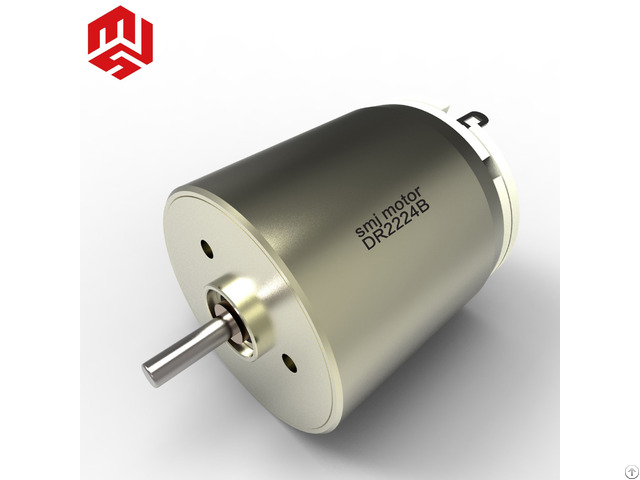

Japanese Factory Mini Coreless Dc Motor Of Maxon S Replacement - China

Series: DR2224B

Japanese factory mini motor can replace Maxon motor Rotary DC Motor Warranty: 3months-1year


Place of Origin: Shanghai, China

Brand Name: SMJ

Usage: BOAT, Electric Bicycle, Cosmetic instrument, SMART HOME, industry automation

Type: Brush Motor

Torque: 5mNm

Construction: Permanent Magnet

Commutation: Brush

Protect Feature: Totally Enclosed

Speed(RPM): 10900rmp


Continuous Current(A): 0.17-0.98A

Efficiency: IE 1

Torque max: 5mNm

Stall Torque: 14mNm

Diameter: 22mm

Length: 24.2mm

Motor type: Ironless

Brush type: graphite brushes

Certification: CE MOQ: 1PCS

DC brushed motor (coreless) application:

1 - The healthcare industry: They can be used to power dialysis pumps, CPAP machines, surgery tools, and ambulatory infusion pumps.

2 - Robotics: Engineers install them in positioning systems and small wheel systems in robot projects.

3 - Automation & Actuators: These motors can be used in precise automation systems and high accuracy actuators.

4 - Laboratories: Engineers can use it to drive small but effective equipment such as pumps, stirrers, and centrifuges.

5 - Office equipment: Thanks to their small size, effective motors can be installed in printers, card readers, and other office

equipment, without the need to make the products bigger.

6 - Audio/visual equipment: Pan and tilt drives for cameras & audio turntables can be fitted with effective motors that work quietly.

Important: Please email us to get the detail specification.
