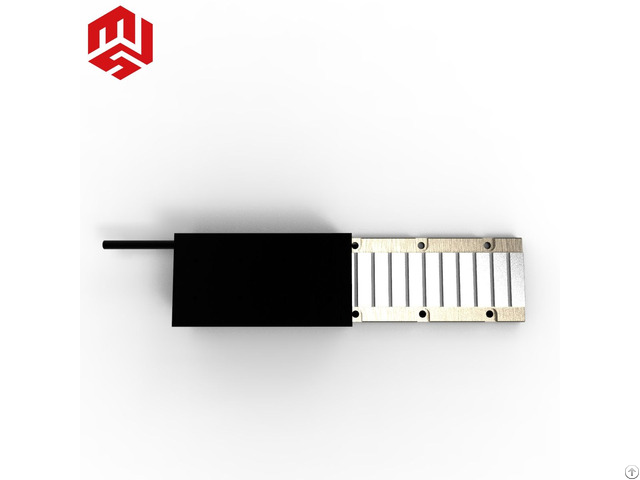

High Force And Speed Flat Type Iron Core Linear Servo Motor For Laser Cutting Machines - China

Series: LMF010

high force & speed flat type iron core linear servo motor for laser cutting machines

Warranty: 3months-1year

Place of Origin: Shanghai, China

Brand Name: SMJ

Usage: semiconductor and medical markets, laser cutting machines

Type: SERVO MOTOR

Torque: as requested

Construction: Permanent Magnet

Commutation: Brushless

Protect Feature: Totally Enclosed

Speed(RPM): fast response speed

Continuous Current(A): 2.4A, 4.8A

Efficiency: IE 1

Continuous force: 79.162.2 N

Motor type: iron core

Peak force: 309.2.635.4 N

Force constant: 32.9.33.8 N/Arms

Thermal Resistance: 2.0.909 ℃/W

Hall sensor: optional

Temperature sensor: optional

Phase: Three-phase

Frequency: 50HZ/60HZ It is our smallest “off the shelf” iron core linear motor.

Continuous force 79.162.2N | Peak force 309.2.635.4N * Iron core technology

* High force constant and low thermal resistance

* Low cogging force

* Hall sensors (optional and pls advise if require)

* Motor coils include a temperature sensor(optional and pls advise if require)

* High force and stiffness We have four different series including LMF010, LMF020, LMF030, LMF040 in a wide range of sizes and coil lengths.

Important: Please email us to get the detailed specification
