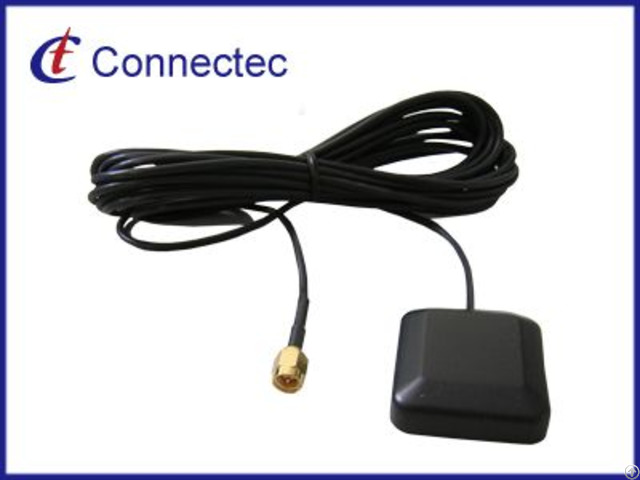

Car Gps Gnss Antenna Ct Gg6180 - Taiwan

This antenna system consists of two functional blocks, the LNA portion and the patch antenna.

CONFIGURATION

* RF Cable：RF Coaxial Cable, ψ2.7± 0.2mm, Cable Length : 5M ± 5cm

* RF Connector：SMA 180°(M) / MCX 90° (M) GENERAL

* Operation Temperature：-40℃ to + 85℃

* Storage Temperatur：-40℃ to + 85℃

* Relative Humidity：40% to 95%

* Input Voltage：Min: 2.5V　　T yp: 3.0V　　Max: 5.5V

* Power Consumption：Typ: 10mA.

　　Max: 15mA.

　　@3.0V ANTENNA

* Antenna Dimensions: 25 x 25 x 4 mm

* Frequency Range: 1575.42 ± 10 MHz.

/ 1602 ± 8MHz

* GAIN - 1575.42MHZ : -3dBi Typ.

@zenith 1602MHZ : -5dBi Typ.

@zenith

* Polaration: RHCP TOTAL SPECIFICATIONS (Through Antenna, LNA, Cable and Connector)

* Frequency Range : 1575.42 ± 10 MHz.

　　 : 1602 ± 8MHz

* Gain : 1575.42MHZ: 27± 3dBi @zenith

　　 : 1602MHZ: 29.5± 3dBi @zenith

* Output Impedance : 50Ω

* Output VSWR : 2.0 Max
