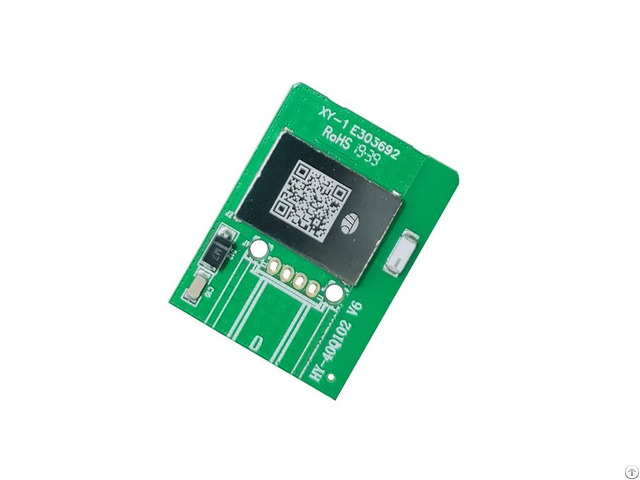

Bluetooth Turn To Lin Module Hy 40q102cc - China

This solution is suitable for AEC-100 Automotive front mounting specifications Bluetooth IC selection：CC2640R2FTWRG ZRQ1 QFN48 7*7 IC Modulation mode: GFSK Bluetooth module size: 35.0*26.2*4.2mm Frequency range: 2402~2480MHZ (2.4G ISM band) Communication interface: LIN IC RF TX power range can be set by software programming: -21~ +5 dB Frequency offset value: RF ± 60ppm, MCU clock 32.768KHz ± 350ppm (using crystal mode) Assembly features: waterproof structure Supply voltage: 10V~26V DC Bluetooth protocol stack: BLE 4.2, support for upgrading to 5.0 Bluetooth chip: CC2640R2FQ1 (Vechile grade) Transmitting power: -21dBm~+5dBm Receive sensitivity: -97dBm Standby power consumption: 3.6uA (CacheRTC operation and RAM hold) Working temperature: -40 ° C ~ +105 ° C The keyless entry and start system, referred to as the PEPS system, uses advanced radio frequency technology to unlock the Automotive door and enter the vechile without the need to operate the car's remote control key.

Under the existing technical conditions, PEPS has more intelligent access control management and higher anti-theft performance, and has gradually become the mainstream of automotive electronic anti-theft system applications
