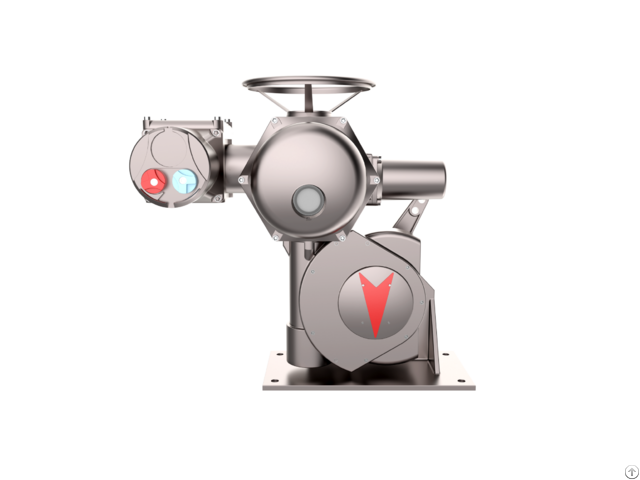

As400 Part Turn Intelligent Motorized Valve Actuator Attuatore Industriale - China
price: 1000.00 Dollar US$
★ Analog input signal: 4～20mA control signal, input impedance≤250Ω; ★ Analog output signal: 4～20mA position signal, load resistance ≤750Ω; temperature influence ±0.1%/10K; ★ Digital input: passive pulse or level signal, the minimum duration of pulse signal is 100ms; ★ Switch output: K1～K6; relay isolated output, rated contact capacity: 5A@250VAC, 5A@30VDC; ★ The analog input, output and digital input channels are all photoelectrically isolated; the analog input and output have short circuit protection; ★ Fieldbus control: support PROFIBUS-DPV0/DPV1, MODBUS, CANopen, etc.
; ★ Adjusting times: starting times can reach 1200 times/hour; ★ Motor insulation level: F; ★ Motor working system: S4; ★ Basic error limit: ≤±1.0%; ★ Return difference: ≤1.0%; ★ Repeatability error of stroke control mechanism: ≤1.0%; ★ Dead zone: 0.1%～9.9% adjustable; ★ Damping characteristics: no swing; ★ Protection level: IP67 (IP68 optional); ★ Explosion-proof type: Explosion-proof grade ExdⅡBT4.
Switch-type basic technical indicators ★ Digital input signal: passive pulse or level signal, the minimum duration of pulse signal is 100ms; ★ Analog output signal: 4～20mA position signal; load resistance ≤750Ω; temperature influence ±0.1%/10K; ★ Switch output signal: K1～K6; relay output, contact rated capacity: 5A@250VAC, 5A@30VDC; ★ The analog output and switch input channels are all photoelectrically isolated, and the analog output has short circuit protection; ★ Fieldbus control: support PROFIBUS-DPV0/DPV1, MODBUS, CANopen, etc.
; ★ Adjusting times: starting times can reach 600 times/hour; ★ Motor insulation level: F; ★ Motor working system: S2; ★ Basic error limit: ≤±1.0%; ★ Return difference: ≤1.0%; ★ Repeatability error of stroke control mechanism: ≤1.0%; ★ Protection level: IP67 (IP68 optional); ★ Explosion-proof type: Explosion-proof grade ExdⅡBT4.
Power supply ★ Voltage: single-phase 220VAC, 50/60Hz; three-phase 380VAC±10%, 50/60Hz; ★ Tolerance: frequency ±1%; harmonic content <5%.
Environmental conditions ★ Ambient temperature: -30℃～+70℃; ★ Relative humidity: ≤95%; ★ Atmospheric pressure: 86kPa～106kPa.
Storage conditions ★ Ambient temperature: -10℃～+45℃; ★ Relative humidity: ≤85% in a ventilated room, the surrounding air does not contain harmful substances that corrode the product.
Company Contact:
- Posted By: TIANJIN FREYA AUTOMATION TECHNOLOGY CO.,LTD
- Phone: 008618522692342
- Address: 16-4-904 WANHUI CULTURE QUARE,NO.5 FUJIN ROAD,ZHONGBEI TOWN,XIQING DISTRICT,TIANJIN,CHINA, Tianjin , TIANJIN , China
- Email:
Published date: May 12, 2021
- Business Description: Dear Sir,
Good day to you.
This is Tianjin Freya Automation Technology Company.
we are the professional manufacturer of electric actuator in Tianjin China mainland with many years of producing and selling experience.
We are able to provide full range of products and technical services
