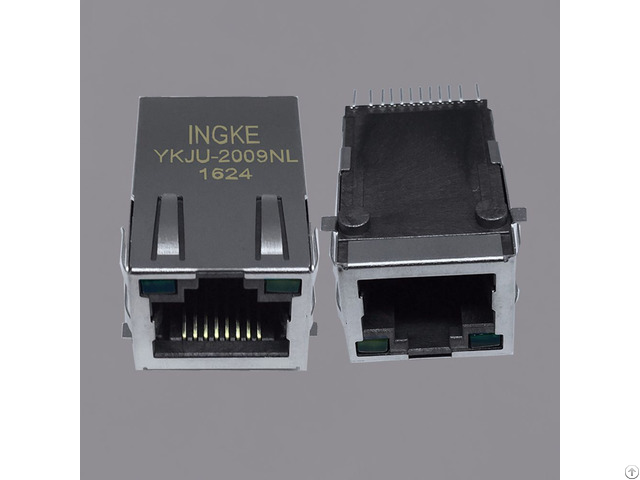

Arje 0034 Ykju 2009nl 10 100 Base T Smt Rj45 Modular Jack Connectors - China

Part Number : ARJE-0034

Made in China: YKJU-2009NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Packaging : Tape & Reel (TR)

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Surface Mount

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green-Yellow

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide, Solder Retention

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

A63-114-300P13B A31-108-660-001 A61-114-200P4C3 A63-114-300P131 A63-114-300P422 A63-112-431P112 A64-112-231N411 A63-112-300P422 A63-112-231N435 A63-114-331P431 A63-114-331P422 A63-114-331P4D2 A63-112-213N491 A63-112-331P431 A60-114-271N414 A60-112-231N432 A64-114-231N411 A63-114-213N491 A63-114-231N435 A60-114-231N432 A64-114-271P521 A60-112-300P492 A64-112-271P521 A63-114-431P112 A60-112-300P432 A60-114-300P432 A60-112-331P432 A60-114-300P492 A60-112-331P411 A60-114-331P432 A60-112-235N414 A60-114-331P411

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
