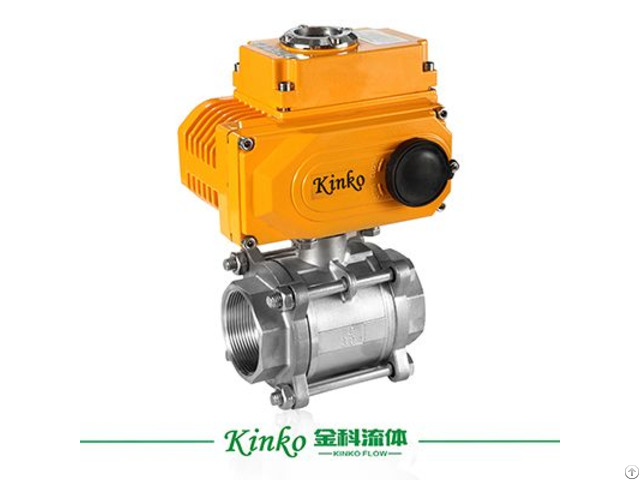

3pc Stainless Steel Automatic Thread Ball Valve With Electric Actuator - China

Ball Valve Specification Product Name Q911F-16P/R

Drive Way electric

Valve Type ball valve

Connection inner thread

Structure floating straight through

Seal Material PTFE

Working Pressure 0~1.6Mpa/150LB

Medium Temperature -20℃~+180℃

Applicable Medium water, steam, natural gas, oil, food, medicine, acid, alkali

Body Material stainless steel CF8/CF8M

Port Size DN8-100

Actuator Material Aluminium Alloy

Actuator Model KK-05~KK20

Circuit Control type ON/OFF type

Rotary Angle 90°

Output Torque 50~200 N/M

Voltage DC24V/110VAC/220VAC/380VA C

Insulation Resistance 100MΩ/500VDC

Working Temperature -20℃~+60℃

Voltage Resistance Rating 1500VAC/minute

Protection Level IP67

Build-in function thermal protection

Installation Position rotary degree 360

Standard GB/JIS/ANSI

Optional function dehumiditifier
