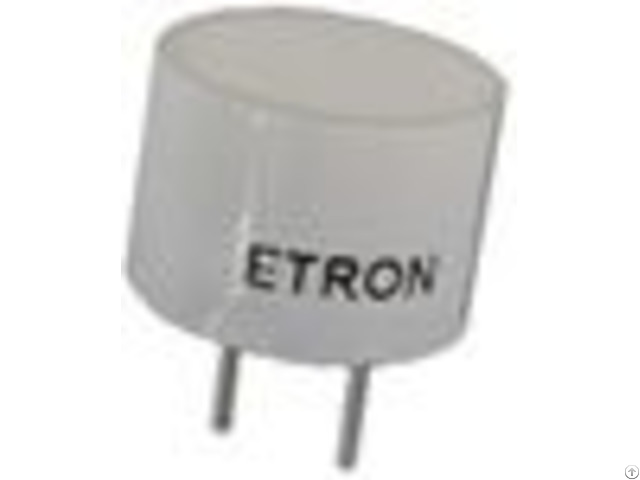

300khz Ultrasonic Sensor - China
price: 5.00 Dollar US$
The 300kHz ultrasonic sensor is developed to be used for distance ranging and multi-feeding detecting of banknotes and paper sheets.
Please contact us when using this product for any other applications different from those described in the above.
Working frequency: 300kHz
Features
1 - Short blanking distance
2 - Low impact against reflective wave
3 - High sensitivity & quick response Items Specification Note
1 Working Frequency 300 kHz 2 Overall Sensitivity 1.5Vpp min.
for first echo Drive signal : 10Vpp, 300kHz, 5pulses Drive interval : 300Hz (3.33ms) Gain of receiving circuit : 60dB Distance to target plate : 100mm in open space (Refer to Fig.
2)
3 Capacitance (pF) 1300±25% @1kHz, 1Vrms
4 Insulation Resistance 100 MΩ min.
@ 100V DC
5 Max.
Driving Voltage 50 Vp-p 6 Typical Directivity 7° half angle @-6dB
7 Distance Ranging 40 ～ 300 mm
Company Contact:
- Phone: 0086-512-65469386
- Address: 50 Chunxing Rd., Suzhou , Jiangsu , China
- Email:
- Website: https://etron.com
Published date: March 7, 2018 - Modified date: March 7, 2018
- Business Description: ETRON Components has been producing inductive components, including toroidal coils, transformers, as well as ultrasonic sensors, current monitors and temperature sensors for years.
Especially, ETRON Components is making 300kHz ultrasonic sensor for detecting multi-feeding of banknotes and papers or ranging small distance.
