Zgsm Ld70lmx Multi Purpose Led Street Light - China

Parking lot LED Light, LED Path Light

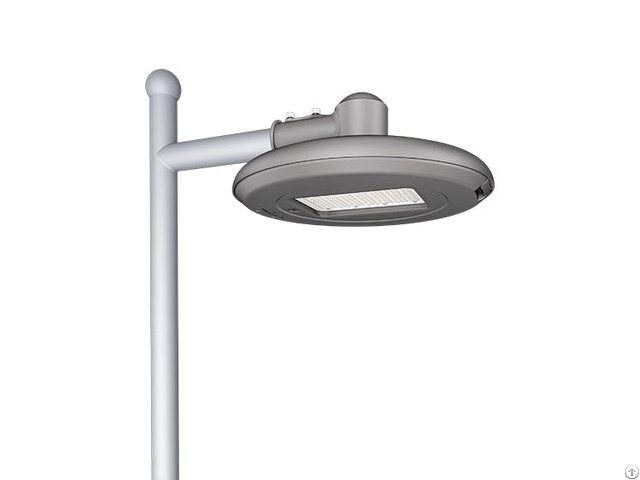

Series L LED Street Light

Model：

ZGSM-LD70LMX

Multi-purpose LED street Light Application：

Street | Road | Highway | Parking lot | Bridge | Path

1 - Wide power range: 27W~120W

2 - Special circuit design, single LED’s damage won't affect others' normal work

3 - Tool-less open for easy installation, replacement and maintenance.

4 - Power-off protection makes the power automatically off when fixture is opened

5 - Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6 - Breather ensures air balance inside and outside of the lamp

7 - High Lumen output up to 150lm/w with high quality LED chips

8 - Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9 - Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10 - Designed to last at least 100, 000 hours at L70

11 - Multiple lighting distributions are available

12 - ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13 - 7 years limited warranty available.

Our LED Street Ligh conclude 120W LED Street Light, 150W LED Street Light, 55W LED Street Light and soon SPECIFICATIONS

Specifications

Model ZGSM-LD70LMX( X= A, B, C, D)

LED Brand LUMILEDS® LUXEON 3030 or 5050

Driver Brand Meanwell HLG series/ Inventronics

Norminal Wattage 70W

LED Chip Quantity 3030: 144pcs 5050: 72pcs

Input Voltage 100-240/277VAC

Power Efficiency >90%

Power Factor >0.95

Lamp Rated Luminous Efficiency 130-150 lm /w

Lamp Rated Lumen output 9100-10500 lm (Lumen tolerance +/- 5%)

Color Rendering Index 70(80 optional)

Color Temperature 3000K or 4000K or 5000K or 5700K

Photometric Type Type I Medium;Type II Medium;Type III Medium; TypeV, Short

Optimal Operating Temperature 25℃
