Professional Mm Single Mode Attenuator Fiber Optic With Sc Connectors - China
price: contact company for price

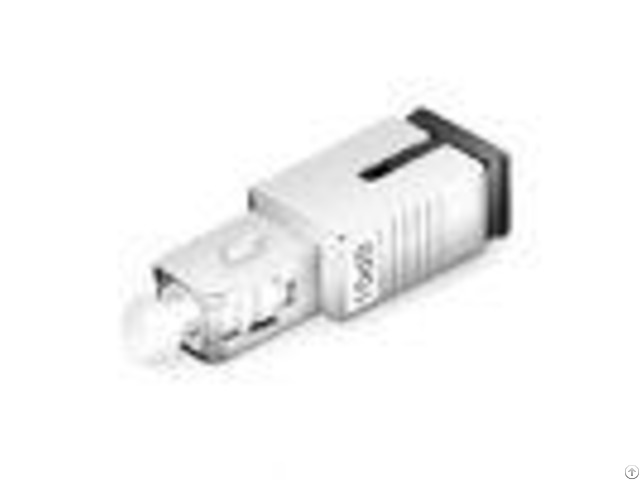

Detailed Product Description SC Fixed Fiber Optic Attenuator, SM/MM As a optical passive devis, attenuators mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired leve in the link without any changes on its original transmission wave.
- - - - Fiber Connector | SC | Connector Gender | Fixed Male to Female | Transfer Mode | SM/MM | Attenuation | 1~25dB | Operating Wavelength(nm) | 1260~1620(SM), 850 or 1330(MM) | Attenuation Accuracy | 1-9dB0.5dB, 10-25dB10% | Return Loss | 55dB | Polarization Dependent Loss | 0.2dB | Max Optical Input Power | 200mW | Humidity | 95%RH | Operating Temp Range | -40~80C | Storage Temp Range | -40~85C | - - - - Quality Certification We are dedicated to providing customers with the outstanding, standards-compliant products and services.
HORIZON.
COM has passed many quality system verification, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Attenuator Application Optical attenuator is a passive device used to reduce the power level of an optical signal.
It is generally used in single-mode long-haul applications to prevent optical overload at the receiver.
Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high power applications.
Company Contact:
- Posted By: Wuhan Horizon Technology Co., Ltd.
- Phone: 86-27-88712630
- Address: Add: No.1 Daxueyuan Rd., Optics Valley, Eastlake Hi-Tech District, Wuhan, China, Wuhan , Hubei , China
- Email:
Published date: March 27, 2018
- Business Description: We believe that customer's satisfaction has always been our guiding principle and our aim is to provide the best quality of products with fair prices.
Trust us, we can be your reliable partner and supplier in telecommunication field.
