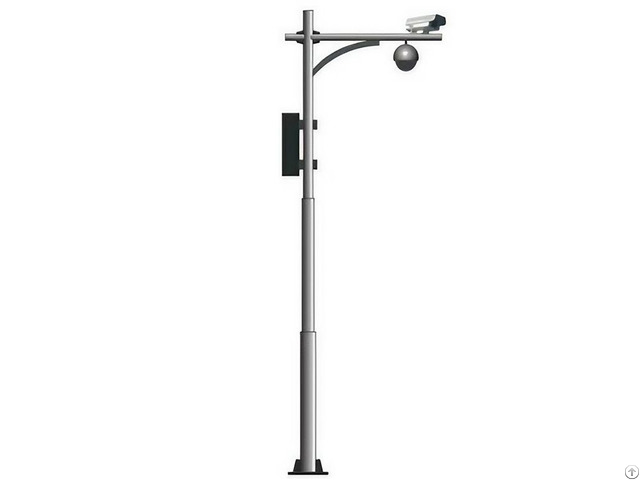

Monitoring Equipment Pole - China

The monitoring equipment pole usually is for traffic regulation monitoring, such as speed, traffic light monitoring, guide line monitoring and etc., to improve the traffic security.

The monitoring pole also can add light source, as survelliance lighting pole.

Application usually is road crossing, schools, communities, factories, border defenses, airports and etc.

Monitoring Equipmeng Pole General Recommend Parameter

Height (m) 8m 10m 12m 18m

Diameter (mm) φ180-φ219 φ180-φ219 φ219-φ273/140-350 φ273/140-380

Thickness (mm) 7/8 7/8 8/10/12 10/12

Flange (mm) Square 600 Square800 Square 800 Square 800-1000 Monitoring Equipment Pole Description

1 - Surface coating uses high-quality polyester plastic powder, which is resistant to strong ultraviolet rays, suitable for coastal cities and heavy salt areas, and the average thickness of the plastic layer is not less than 80 microns.

2 - Production procedure: melting active gas shielded welding, AWS ER70S-6 welding wire, indoor welding, reliable welding material quality, crack resistance, and small welding deformation.

3 - Production Capability: 5000pcs/month

4 - Lifespan: more than 30 years.

5 - Monitoring equipment pole accessories: ground cage, bolts, nuts, gaskets, wires and cables, etc.

Monitoring Equipment Pole Customization:

1 - General characteristics: the pole height, shape and thickness, the facility part according to customer request.

2 - Monitoring Equipment pole material: Steel S235 and Steel S355.

3 - Surface treatment: Hot-dip galvanizing, spraying plastics, and painting.

For spraying plastic and painting, thickness and different color can be chosen.

Free design:

Except the general characteristics, such as dimension and surface color, we can help our customers to design their own pole structure, customers only need to put forward their use needs and provide the local climate and site conditions, we can design the product for free.

Especially For different countries, the weather and seismic data must be taken into account in the designing to ensure the durability of the monitoring equipment pole.

International Certificates:

All the products use international standard steel, the material complies with the provisions of EU standard and the welding procedure specification (WPS) in accordance with EN1090 requirements.

International certificates: ISO 9001, 1SO14001, ISO45001, EN12899-1, EN1090, and CE.

Installation:

The monitoring equipment pole is installed by base cage, bolt and flange.

It is easy-installation and we also can provide the installation guide on request.

If you also need us to provide technical team to install on site, it's workable, and we charge only the labor cost.

Maintenance for Monitoring Equipment Pole:

The monitoring equipment pole is produced with quality material, meet with outdoor standard, usually no need to make special maintenance, if need maintenance you can by cage ladder or lift truck.
